3554275C91

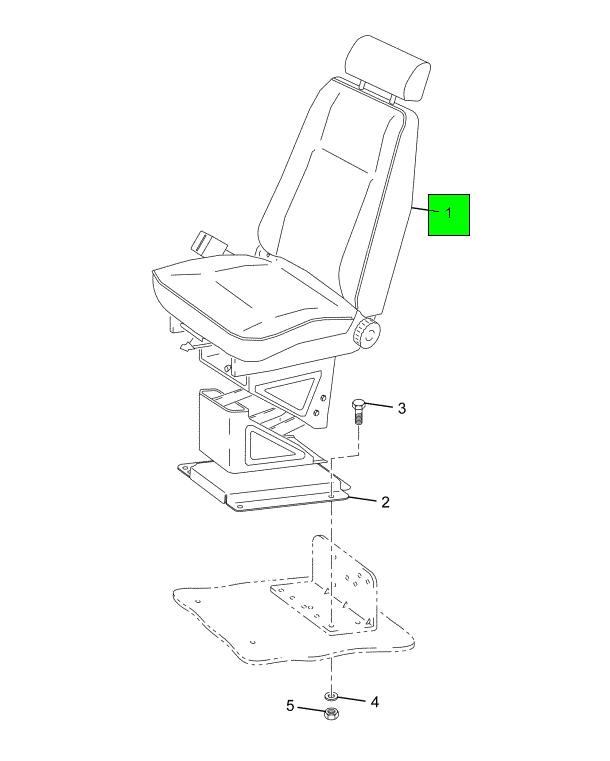

SEAT, HIGH BACK DRIVER /PASSENGER GRAY VINYL/CLOTH 2295H-20
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$419.95
$503.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK DRIVER /PASSENGER GRAY VINYL/CLOTH 2295H-20
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT GRAY VINYL/CLOTH | 1 | 2505574C91 |
| COVER, SEAT CUSHION SEAT BOTTOM GRAY VINYL/CLOTH | 1 | 2505629C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2504133C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| COVER, SEAT SUSPENSION | 1 | 1697601C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| COVER, MID BACK SEAT CUSHION SEAT BACK GRAY VINYL/CLOTH | 1 | 2505628C1 |
| CUSHION, SEAT BACK GRAY VINYL/CLOTH | 1 | 2505604C91 |
| REST, HEAD GRAY VINYL/CLOTH | 1 | 2505885C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 1685458C1 |
| FR, SEAT BACK MID BACK | 1 | 2505884C1 |
| FR, SEAT LOWER | 1 | 2505878C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| KIT, REPAIR SEAT CUSHION FRONT | 1 | 2595024C91 |
| STUD, TRACK | 4 | 2502303C1 |
CROSS REFERENCES
- NATL ST 50153.10A003
- NATL ST 50153.10A003
- NATL ST 5015310A003
- NATL ST 5015310A003
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
