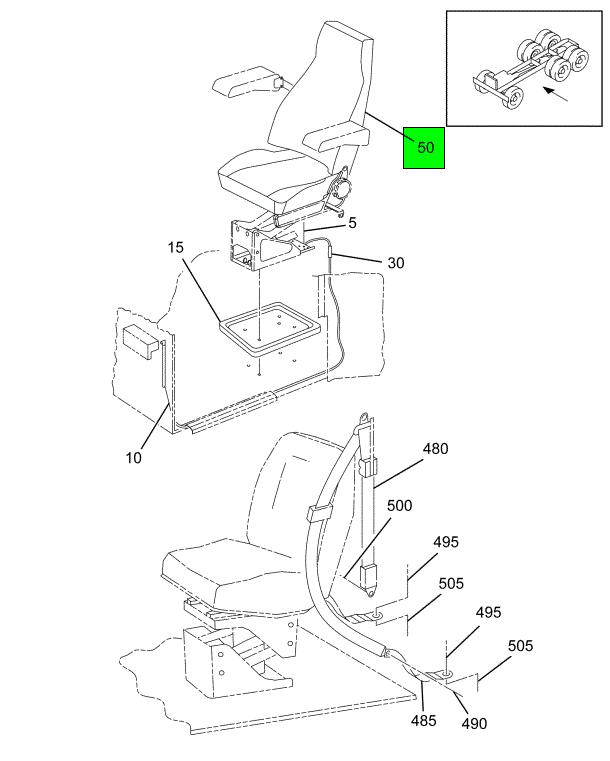

3551790C91
SEAT, HIGH BACK DRIVERS WITH HEAD REST BLUE MORDURA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,049.95
$1,259.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK DRIVERS WITH HEAD REST BLUE MORDURA
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 2509416C91 |
| SUPPORT, TRIPLE CHAMBER AIR LUMBAR | 1 | 2505473C1 |
| CUSHION, SEAT BACK BLUE MORDURA | 1 | 2505666C91 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 1699520C1 |
| PEDESTAL, SEAT | 1 | 2505381C91 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| CUSHION, HIGH BACK SEAT BACK BLUE MORDURA | 1 | 2505668C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 5 | 2505476C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505469C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2588939C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2505359C1 |
| FR, SEAT LOWER | 1 | 2505985C1 |
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 1 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| COVER, SEAT BASE SUSPENSION | 1 | 1698112C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| STUD, TRACK | 4 | 2502303C1 |
CROSS REFERENCES
- NATL ST &50155.44A
- NATL ST &50155.44A
- NATL ST &50155.44AH1C
- NATL ST &50155.44AH1C
- NATL ST 50155.44AH1C
- NATL ST 50155.44AH1C
- NATL ST 5015544AH1C
- NATL ST 5015544AH1C
- NATL ST 59490.43AH1C
- NATL ST 59490.43AH1C
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
