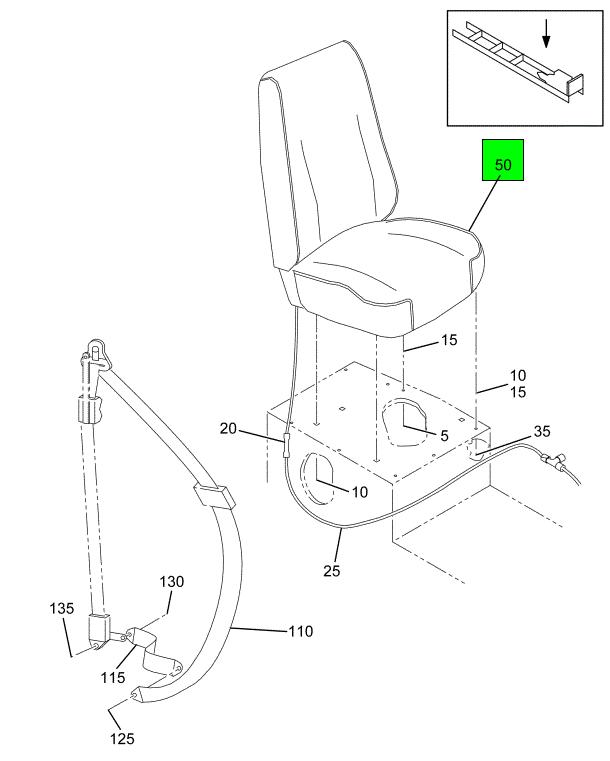

3547500C91
SEAT, HIGH BACK PASSENGER AIR SUSPENSION BROWN VINYL/VELOUR 18"
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$629.95
$755.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK PASSENGER AIR SUSPENSION BROWN VINYL/VELOUR 18"
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502319C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| BUMPER, SEAT FR | 1 | 337091C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| PEDESTAL, SEAT UPPER BASE | 1 | 2502314C91 |
| PEDESTAL, SEAT LOWER BASE | 1 | 2505983C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2502316C91 |
| ARM, LOWER W/BUSHINGS | 1 | 2502317C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 2509416C91 |
| SUPPORT, SINGLE CHAMBER AIR LUMBAR | 1 | NSSK150401 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| SUPPORT, SINGLE CHAMBER AIR LUMBAR | 1 | 2505855C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 1699520C1 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| CUSHION, SEAT BOTTOM BROWN VINYL/VELOUR | 1 | 2505564C91 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| FR, SEAT BACK MID BACK | 1 | 2505880C1 |
| CUSHION, MID BACK SEAT BACK BROWN VELOUR/VINYL | 1 | 2505673C91 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501751C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| STUD, TRACK | 4 | 2502303C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| KIT, REPAIR SEAT CUSHION FRONT | 1 | 2595024C91 |
CROSS REFERENCES
- NATL ST &70096.12A
- NATL ST &70096.12A
- NATL ST &70096.12AO22
- NATL ST &70096.12AO22
- NATL ST 70096.12A002
- NATL ST 70096.12A002
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
