3547485C91

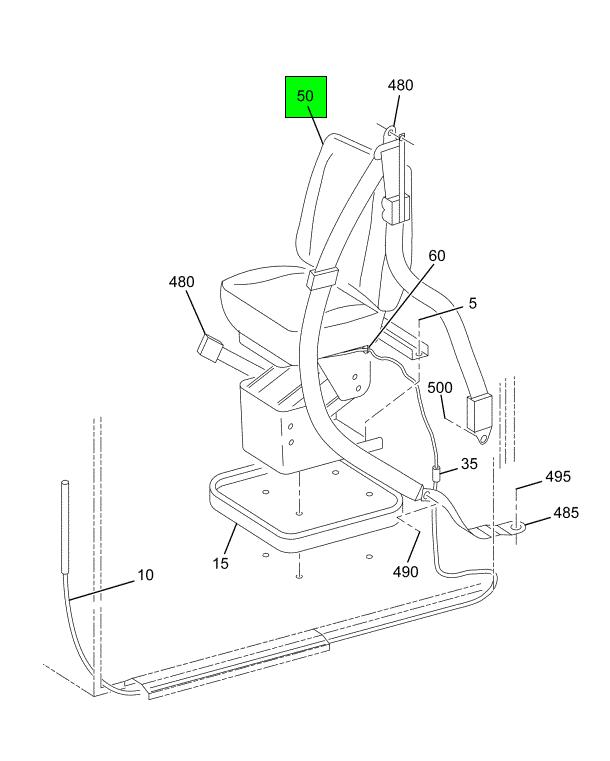

SEAT, MID BACK DRIVER AIR SUSPENSION BROWN VINYL/CLOTH 2295-20
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$769.95
$923.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, MID BACK DRIVER AIR SUSPENSION BROWN VINYL/CLOTH 2295-20
Weight
79.17 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| CUSHION, SEAT BROWN VINYL/CLOTH | 1 | 2505559C91 |
| PEDESTAL, SEAT | 1 | 2505381C91 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| CUSHION, MID BACK SEAT BACK BROWN VINYL/CLOTH | 1 | 2507977C91 |
| ARMREST BROWN VINYL RIGHT HAND | 1 | 3551713C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 5 | 2505476C1 |
| ARMREST BROWN VINYL LEFT | 1 | 3560041C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2505859C1 |
| FR, SEAT BACK MID BACK | 1 | 2505880C1 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| ARM, ASSEMBLY LOWER F/LTD UP- STOP | 1 | 2505386C91 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| PAD, CRASH MID BACK SEAT | 1 | 2505881C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 4 | 1699520C1 |
| SUPPORT, SINGLE CHAMBER AIR LUMBAR | 1 | NSSK150401 |
| SUPPORT, SINGLE CHAMBER AIR LUMBAR | 1 | 2505855C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| COVER 20" | 1 | NS23097201 |
| STUD, TRACK | 4 | 2502303C1 |
CROSS REFERENCES
- NATL ST &50091.12A
- NATL ST &50091.12A
- NATL ST &50091.12AB12
- NATL ST &50091.12AB12
- NATL ST 50091.12AB12
- NATL ST 50091.12AB12
- NATL ST 5009112AB16
- NATL ST 5009112AB16
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
