3544291C91
SEAT DRS 2195-20 BRGDY MORDURA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$679.95
$815.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER HIGH AIR BURGUNDY MORDURA EAGLE 16KHD
Weight
108.0002 lbs

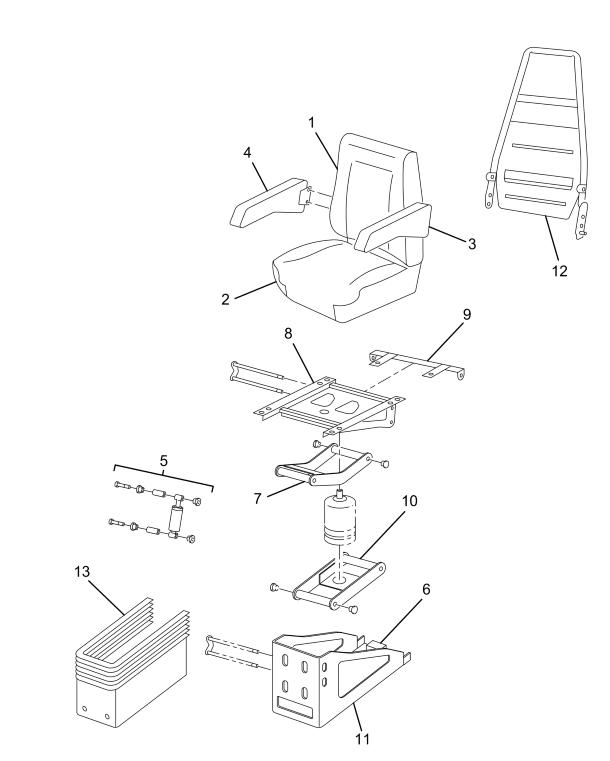

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, HIGH BACK SEAT BACK BURGUNDY MORDURA | 1 | 2504733C91 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| PEDESTAL, SEAT COMPLETE BASE W/SWIVEL | 1 | 2502312C91 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2503618C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2502295C1 |
| COVER, SEAT BASE SUSPENSION | 1 | 1698112C1 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| CUSHION, SEAT BURGUNDY MORDURA | 1 | 1698629C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BUMPER, STOP SEAT DOWN RUBBER | 1 | 1698198C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2500135C91 |
| SUPPORT, SEAT | 1 | 1699844C1 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| PEDESTAL, SEAT COMPLETE BASE AND UPRIGHT | 1 | 2503846C91 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 1698111C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
