3543955C91
Seat, Passenger
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$909.95
$1,091.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
Navistar Group Code
16
VMRS
002-027-003
OEM Description
SEAT, HIGH BACK PASSENGER GRAY VINYL 450
Weight
163.34 lbs

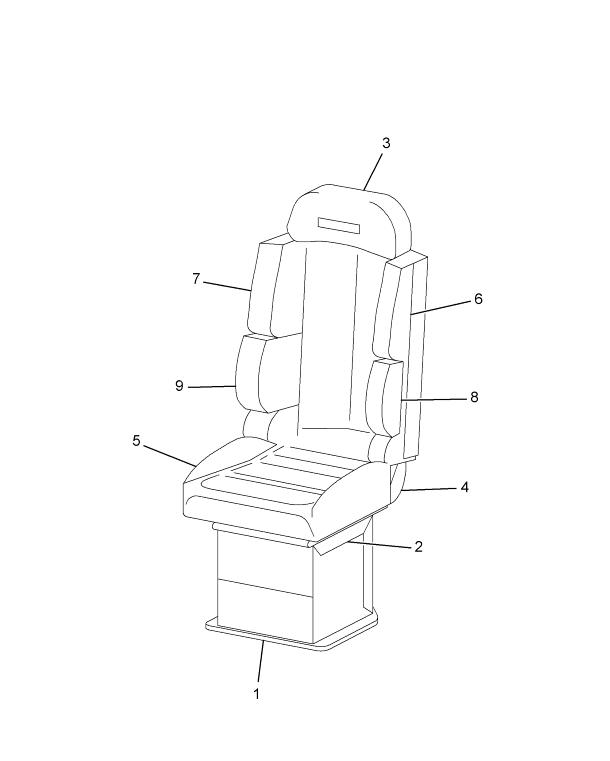

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| RISER, SEAT CABINET | 1 | 2508313C1 |
| PLATE, SEAT FLOOR ADAPTER | 1 | 2508308C1 |
| REST, HEAD | 1 | 2508314C91 |
| ADJUSTER 5" FORE/AFT HEAVY DUTY | 1 | 2508315C91 |
| CUSHION, SEAT GRAY | 1 | 2508316C91 |
| CUSHION, LOW BACK SEAT BACK | 1 | 2508317C91 |
| CUSHION, SEAT BACK RIGHT HAND BOLSTER | 1 | 2508318C91 |
| CUSHION, HIGH BACK SEAT BACK STORE- ALL | 1 | 2508319C91 |
| CUSHION, SEAT BACK STORE- ALL RIGHT | 1 | 2508320C91 |
CROSS REFERENCES
- HO BOST 7503-2285F
- HO BOST 7503-2285F
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
