3543286C91
SEAT, HIGH BACK DRIVERS DUAL SHOCK ABSORBER AIR SUSPENSION GRAY MORDURA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$489.95
$587.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, HIGH BACK DRIVERS DUAL SHOCK ABSORBER AIR SUSPENSION GRAY MORDURA

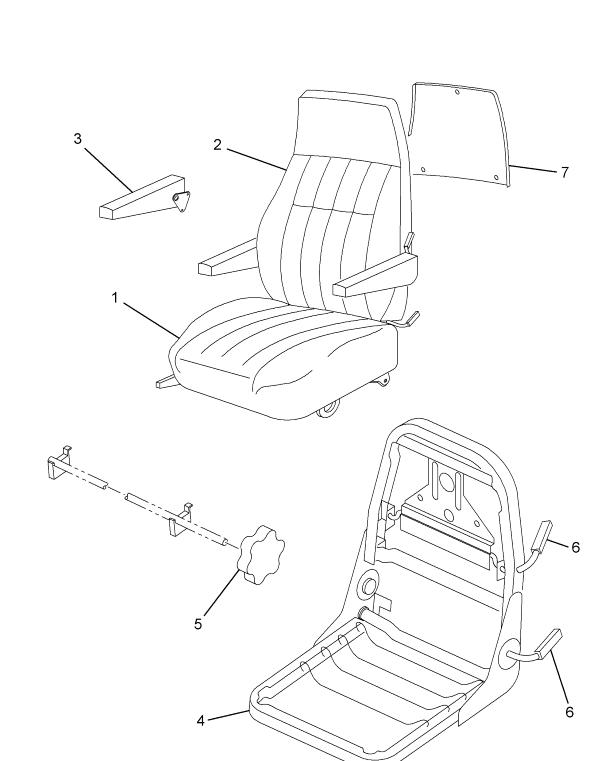

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COVER, SEAT CUSHION SEAT BOTTOM GRAY CORDURA | 1 | 2504502C1 |
| PAD, SEAT CUSHION | 1 | 1699241C1 |
| RISER, SEAT SUPPORT | 1 | 2504140C1 |
| COVER, MID BACK SEAT CUSHION SEAT BACK GRAY MORDURA | 1 | 2505096C1 |
| PAD, MID BACK SEAT BACK CUSHION | 1 | 1698454C1 |
| ARMREST GRAY MORDURA LEFT AND RIGHT HAND | 2 | 3544024C1 |
| FR, SEAT MID BACK | 1 | 1697572C1 |
| KNOB, ADJUSTABLE LUMBAR SEAT | 1 | 2500386C1 |
| HANDLE, SEAT ADJUSTABLE RECLINER | 1 | 2503746C1 |
| PLATE, SEAT UPPER WELDMENT | 1 | 2501476C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
