3542529C91
SEAT, HIGH BACK DRIVERS AIR SUSPENSION GRAY MORDURA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$599.95
$719.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK DRIVERS AIR SUSPENSION GRAY MORDURA

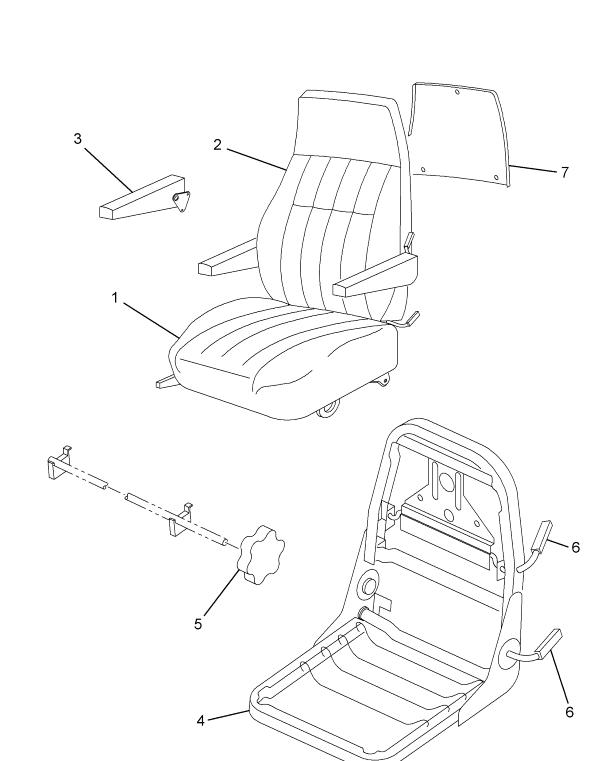

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COVER, SEAT CUSHION SEAT BOTTOM GRAY CORDURA | 1 | 2504502C1 |
| PAD, SEAT CUSHION | 1 | 1699241C1 |
| RISER, SEAT SUPPORT | 1 | 1691515C1 |
| RISER, SEAT SUPPORT | 1 | 1697727C1 |
| PAD, HIGH BACK SEAT BACK CUSHION | 1 | 1698425C1 |
| GROMMET, SEAT HEADREST | 1 | 2503745C1 |
| COVER, SEAT CUSHION SEAT BACK GRAY MORDURA | 1 | 2504503C1 |
| ARMREST GRAY MORDURA LEFT AND RIGHT HAND | 2 | 3544024C1 |
| FR, HIGH BACK SEAT | 1 | 2503266C1 |
| KNOB, ADJUSTABLE LUMBAR SEAT | 1 | 2500386C1 |
| HANDLE, SEAT ADJUSTABLE RECLINER | 1 | 2503746C1 |
| PLATE, SEAT UPPER WELDMENT | 1 | 2501476C1 |
| LEVER, COMPLETE | 1 | 1691513C1 |
CROSS REFERENCES
- BOSTROM &2341110-5
- BOSTROM &2341110-5
- BOSTROM 2341110-552
- BOSTROM 2341110-552
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
