3540795C91
SEAT, HIGH BACK DRIVERS CHARCOAL VINYL/VELOUR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$689.95
$827.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-027-003
OEM Description
SEAT, HIGH BACK DRIVERS CHARCOAL VINYL/VELOUR

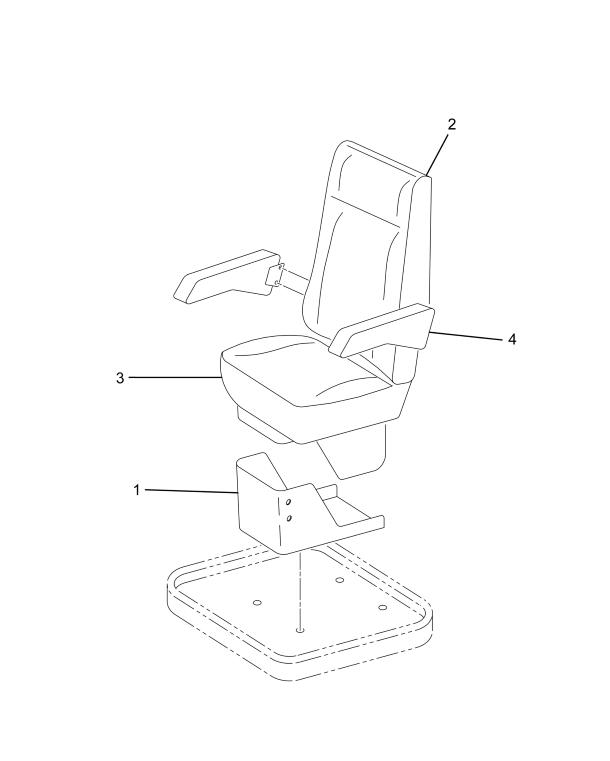

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PEDESTAL, SEAT W/8" SLIDES | 1 | 1698873C91 |
| CUSHION, HIGH BACK SEAT BACK CHARCOAL VINYL W/FR | 1 | 2508345C91 |
| COVER, SEAT CUSHION SEAT BACK CHARCOAL VINYL/VELOUR | 1 | 1698541C91 |
| CUSHION, SEAT BOTTOM CHARCOAL VINYL/VELOUR | 1 | 1698531C91 |
| VALVE, AIR LEVEL SEAT W/BRACKET | 1 | 1694360C91 |
CROSS REFERENCES
- SEARS M SA13567.2SW
- SEARS M SA13567.2SW
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
