3538205C91
SEAT, HIGH BACK DRIVERS AIR SUSPENSION BURGUNDY/CHARCOAL FABRIFORM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$789.95
$947.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK DRIVERS AIR SUSPENSION BURGUNDY/CHARCOAL FABRIFORM
Weight
188.39 lbs

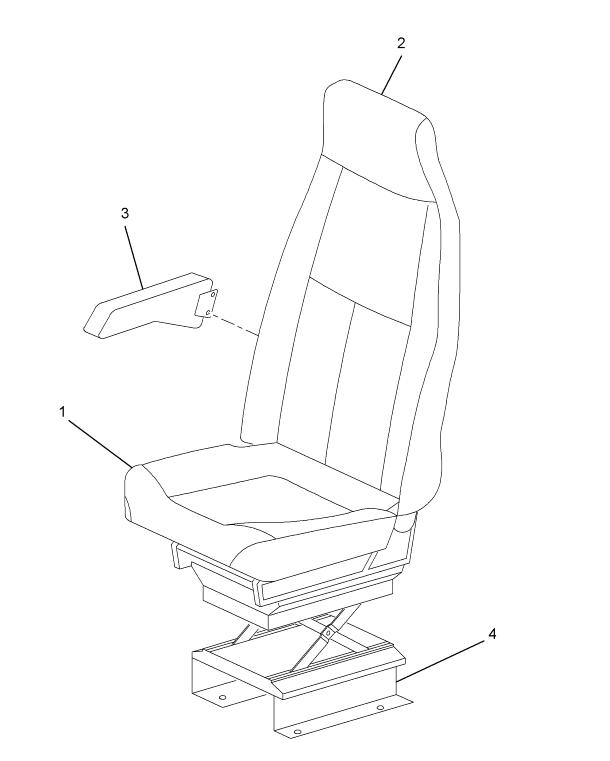

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT BURGUNDY | 1 | 2503314C91 |
| CUSHION, HIGH BACK SEAT BACK BURGUNDY/CHARCOAL W/FR | 1 | 2503313C91 |
| ARMREST BURGUNDY/CHARCOAL CLOTH LEFT HAND | 1 | 3525557C1 |
| ARMREST BURGUNDY/CHARCOAL CLOTH RIGHT HAND | 1 | 3525553C1 |
| PEDESTAL, SEAT SUPENSION | 1 | 2504064C91 |
| VALVE, AIR LEVEL SEAT W/BRACKET | 1 | 2503762C91 |
CROSS REFERENCES
- SEARS M ZDWTQ2438030
- SEARS M ZDWTQ2438030
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
