3536750C93
SEAT ,BENCH EXT CAB REAR, CLOTH
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$799.95
$959.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT ,BENCH EXT CAB REAR, CLOTH
Weight
117.25 lbs

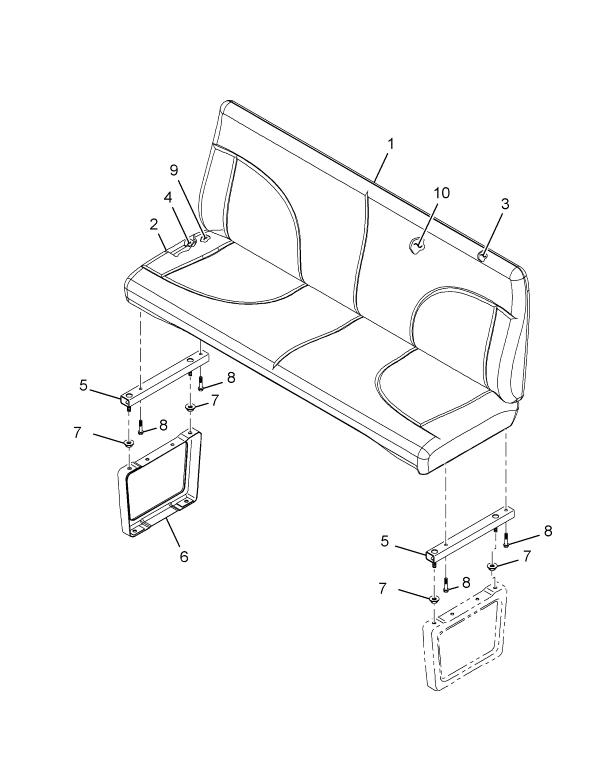

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT BACK LOW BACK | 1 | 2507632C91 |
| FR, BENCH SEAT CUSHION FRONT | 1 | 2507630C91 |
| PAD, SEAT FRONT BENCH MID BACK | 1 | 2598613C1 |
| SPACER, BUCKET SEAT MOUNTING | 2 | 2505735C1 |
| RISER, BENCH SEAT | 1 | 2507633C91 |
| BOLT, HEXAGON W/WASHER | 12 | 2598615C1 |
| BRACKET ,BENCH BACK | 1 | 2611304C91 |
| BRACKET BENCH BACK | 1 | 2611305C91 |
| SUPPORT, SEAT CANVAS CLOTH RIGHT HAND | 3 | 2593487C1 |
CROSS REFERENCES
- GRAMAG C1NM-EU-60000-E
- GRAMAG C1NM-EU-60000-E
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
