3535384C91
SEAT DRS 2195-20 BLUE MORDURA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$709.95
$851.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description

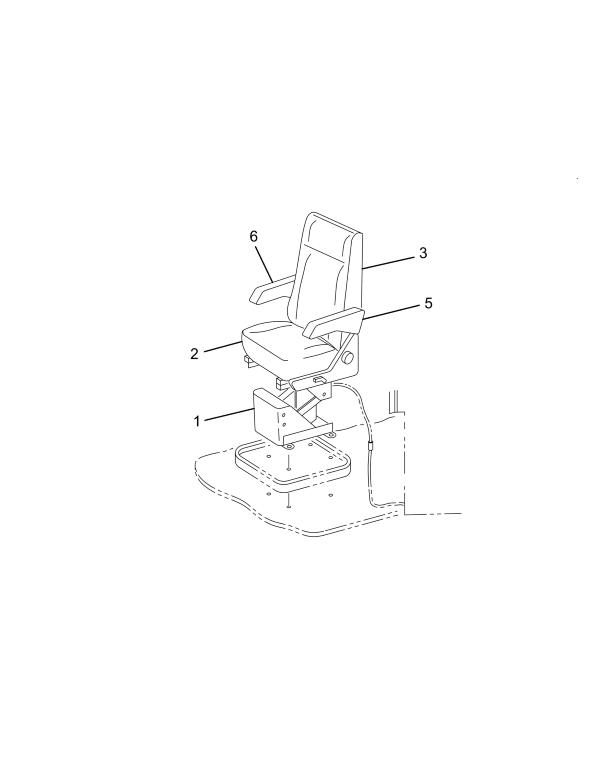

SEAT, DRIVER HIGH AIR BLUE MORDURA EAGLE 16KHD
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2503618C1 |
| CUSHION, SEAT BOTTOM BLUE MORDURA | 1 | 1698188C91 |
| CUSHION, HIGH BACK SEAT BACK BLUE MORDURA | 1 | 2503619C91 |
| ARMREST BLUE MORDURA LEFT HAND | 1 | 2515065C1 |
| ARMREST BLUE MORDURA LEFT HAND | 1 | 1697008C1 |
| ARMREST BLUE MORDURA RIGHT HAND | 1 | 2029134C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 1698111C1 |
| SUPPORT, SEAT | 1 | 1699844C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2500135C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| PEDESTAL, SEAT COMPLETE BASE W/SWIVEL | 1 | 2502312C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2502295C1 |
| BUMPER, STOP SEAT DOWN RUBBER | 1 | 1698198C1 |
| COVER, SEAT BASE SUSPENSION | 1 | 1698112C1 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| PEDESTAL, SEAT COMPLETE BASE AND UPRIGHT | 1 | 2503846C91 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
