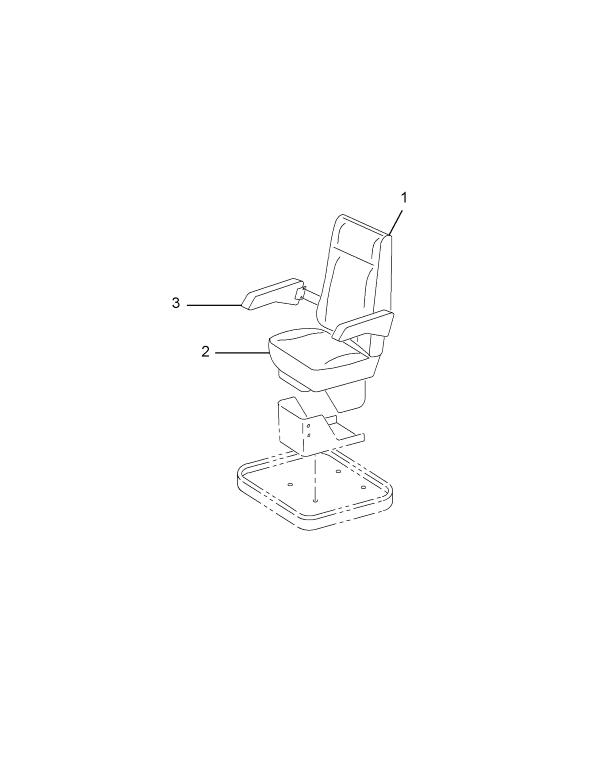

3531900C91
SEAT, HIGH BACK PASSENGER AIR SUSPENSION GRAY FABRIFORM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$639.95
$767.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK PASSENGER AIR SUSPENSION GRAY FABRIFORM
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, HIGH BACK SEAT BACK GRAY FABRIFORM | 1 | 2503309C91 |
| CUSHION, SEAT GRAY FABRIFORM | 1 | 2503310C91 |
| VALVE, AIR LEVEL SEAT W/BRACKET | 1 | 2503762C91 |
| ISOLATOR, SEAT | 1 | 1694358C91 |
| KIT, SEAT TETHER BAR W/BOLTS | 1 | 1694361C91 |
| KIT, SEAT STOP BRACKET | 1 | 1694362C91 |
| SHOCK ABSORBER | 1 | 1694363C91 |
| KIT, LOWER SEAT HOUSING W/LINK | 1 | 1694029C91 |
| SET, BEARING SEAT SUSPENSION | 1 | 1694364C91 |
| KIT, SEAT ARM LINKAGE | 1 | 1694365C91 |
| KIT, AIR SPRING SEAT | 1 | 2503763C91 |
| KIT, UPPER SEAT HOUSING | 1 | 1694367C91 |
CROSS REFERENCES
- SEARS M ZDWTR2437000
- SEARS M ZDWTR2437000
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
