3528547C91
SEAT DRS HI BRWN MORDURA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$419.95
$503.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, HIGH BACK DRIVERS BROWN MORDURA CLOTH

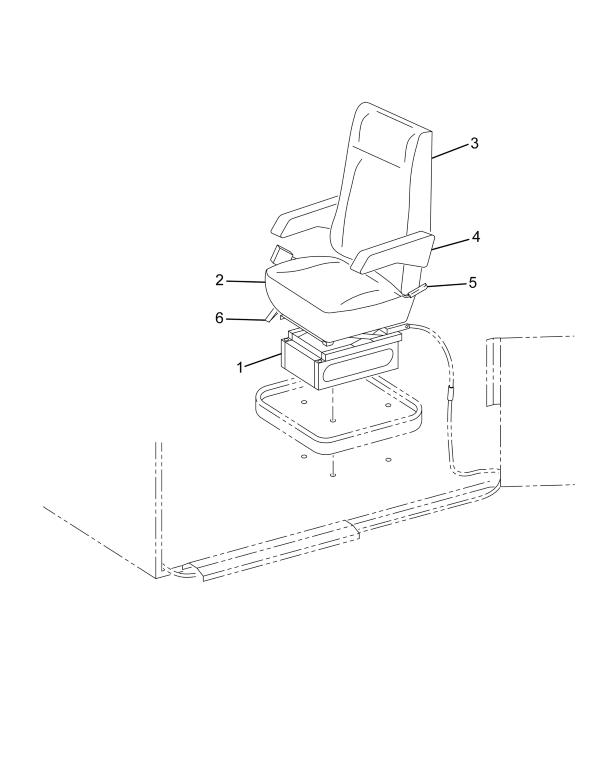

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| RISER, SEAT SUPPORT | 1 | 1691515C1 |
| RISER, SEAT SUPPORT | 1 | 1697597C1 |
| COVER, SEAT CUSHION SEAT BOTTOM BROWN MORDURA | 1 | 1699912C1 |
| PAD, SEAT CUSHION | 1 | 1699241C1 |
| COVER, HIGH BACK SEAT CUSHION SEAT BACK BROWN MORDURA | 1 | 2503299C1 |
| PAD, HIGH BACK SEAT BACK CUSHION | 1 | 1698425C1 |
| LEVER, SEAT OTR | 1 | 1697594C1 |
| LEVER, INNER SEAT | 1 | 1691513C1 |
| LEVER, INNER SEAT | 1 | 1697595C1 |
| FR, SEAT HIGH BACK | 1 | 1697571C1 |
| KNOB, ADJUSTABLE LUMBAR SEAT | 1 | 2500386C1 |
| HANDLE BACK ADJUSTER AND LUMBAR | 1 | 1666341C1 |
| PLATE, SEAT UPPER WELDMENT | 1 | 2501476C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
