3526193C91
SEAT DRIVERS*INT AIR GRAY MORD
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$559.95
$671.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER INTAKE AIR GRAY MORDURA PREM 16KGX

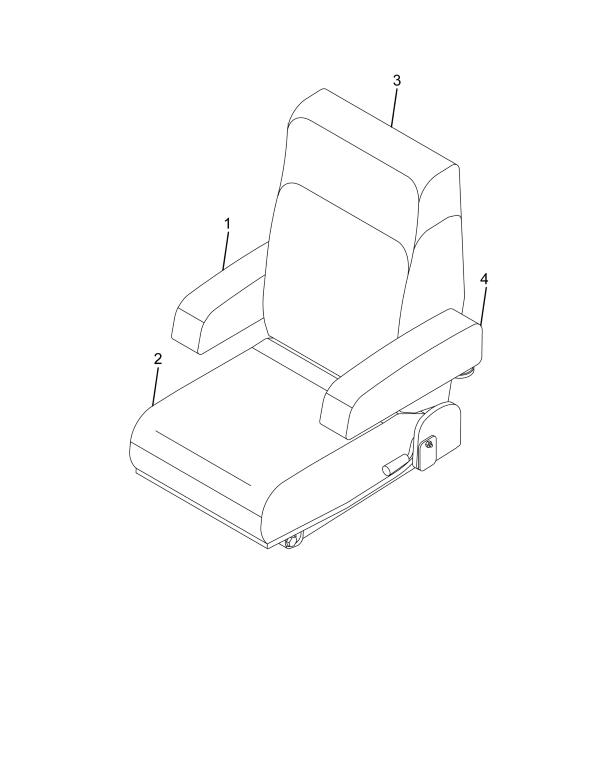

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ARMREST GRAY MORDURA RIGHT HAND | 1 | 2030151C1 |
| CUSHION, SEAT GRAY MORDURA | 1 | 1697891C92 |
| CUSHION, SEAT GRAY MORDURA | 1 | 1697891C91 |
| CUSHION, MID BACK SEAT BACK GRAY MORDURA | 1 | 1698637C91 |
| ARMREST GRAY MORDURA LEFT HAND | 1 | 2507961C1 |
| ARMREST GRAY MORDURA LEFT HAND | 1 | 1697888C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 1685749C1 |
| SUPPORT, SEAT | 1 | 1699844C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2500135C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| PEDESTAL, SEAT | 1 | 1696989C91 |
| BUMPER, STOP SEAT DOWN RUBBER | 1 | 1698198C1 |
| COVER, SEAT SUSPENSION | 1 | 1698108C1 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| PAD, SEAT CRASH | 1 | 1698220C1 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| PEDESTAL, SEAT COMPLETE BASE AND UPRIGHT | 1 | 2503846C91 |
| FR, SEAT BACK MID BACK | 1 | 2502296C1 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
