3525139C91

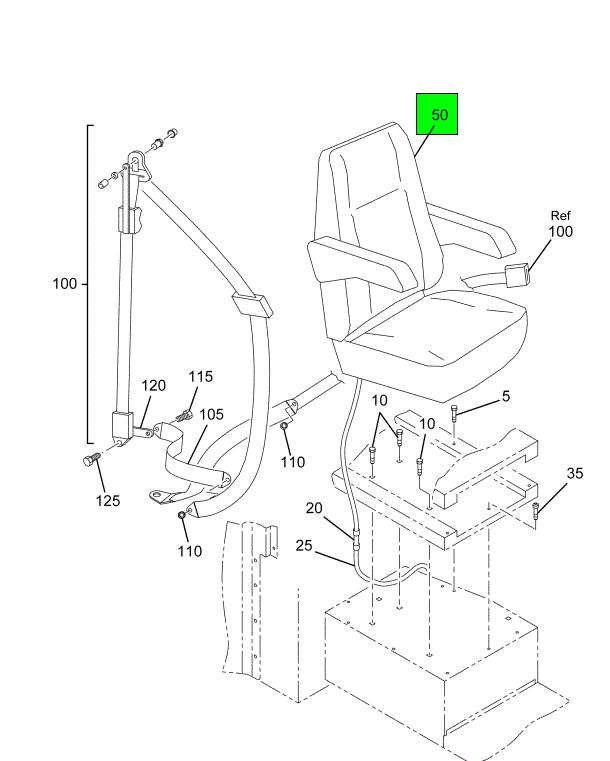

SEAT, HIGH BACK PASSENGER AIR SUSPENSION BLUE FABRIFORM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$699.95
$839.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK PASSENGER AIR SUSPENSION BLUE FABRIFORM

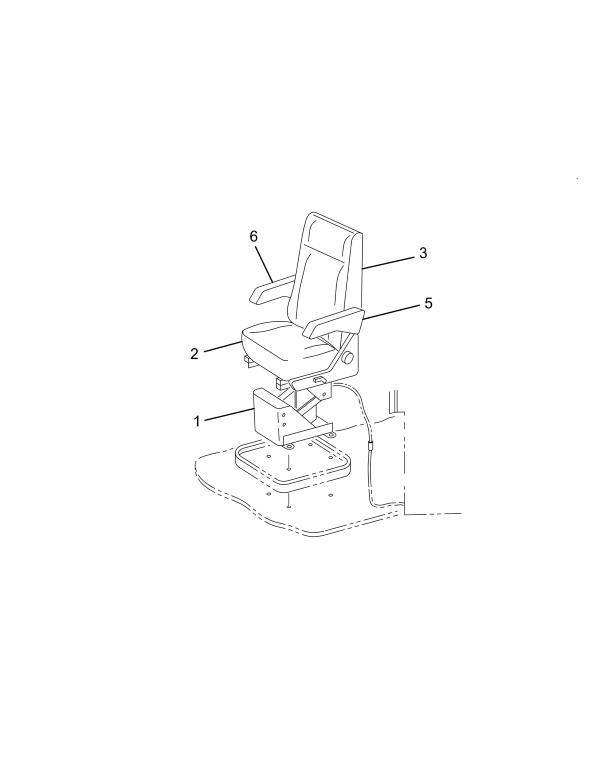

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PEDESTAL, SEAT SUPENSION W/6" SIDES | 1 | 2503322C91 |
| CUSHION, SEAT BLUE FABRIFORM | 1 | 2503328C91 |
| CUSHION, HIGH BACK SEAT BACK BLUE FABRIFORM | 1 | 2503327C91 |
| ARMREST BLUE CLOTH DURAFORM RIGHT HAND | 1 | 3525552C1 |
| BUSHING SEAT ARM TUBE | 2 | 2503315C1 |
| VALVE, AIR LEVEL SEAT | 1 | 337090C91 |
| WASHER SEAT ADJUSTER | 1 | 1655444C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 1694371C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2503316C1 |
| SPRING, AIR SEAT | 1 | 2503317C1 |
| ADJUSTER, SEAT LOCKING LEFT HAND | 1 | 2503320C1 |
| ADJUSTER, SEAT LOCKING RIGHT HAND | 1 | 2503321C1 |
CROSS REFERENCES
- SEARS M ZCAGN2409020
- SEARS M ZCAGN2409020
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
