3525135C91
SEAT, HIGH BACK DRIVERS AIR SUSPENSION BLUE FABRIFORM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$669.95
$803.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-027-003
OEM Description
SEAT, HIGH BACK DRIVERS AIR SUSPENSION BLUE FABRIFORM

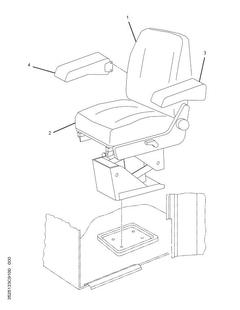

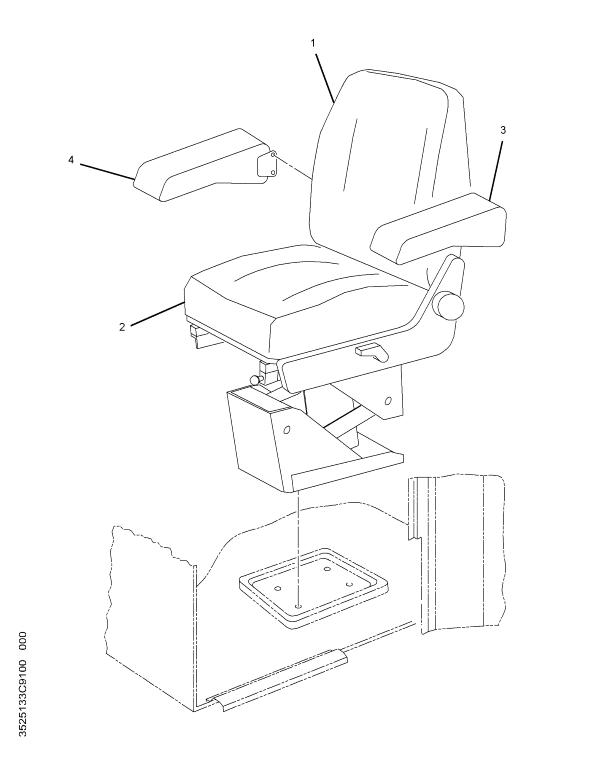

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, HIGH BACK SEAT BACK BLUE FABRIFORM W/FR | 1 | 2503311C91 |
| CUSHION, SEAT BLUE FABRIFORM | 1 | 2503312C91 |
| ARMREST BLUE CLOTH LEFT HAND | 1 | 3525556C1 |
| VALVE, AIR LEVEL SEAT W/BRACKET | 1 | 1694360C91 |
CROSS REFERENCES
- SEARS M ZDWGN2439010
- SEARS M ZDWGN2439010
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
