3525134C91
SEAT, HIGH BACK DRIVERS AIR SUSPENSION GRAY FABRIFORM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$669.95
$803.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-027-003
OEM Description
SEAT, HIGH BACK DRIVERS AIR SUSPENSION GRAY FABRIFORM

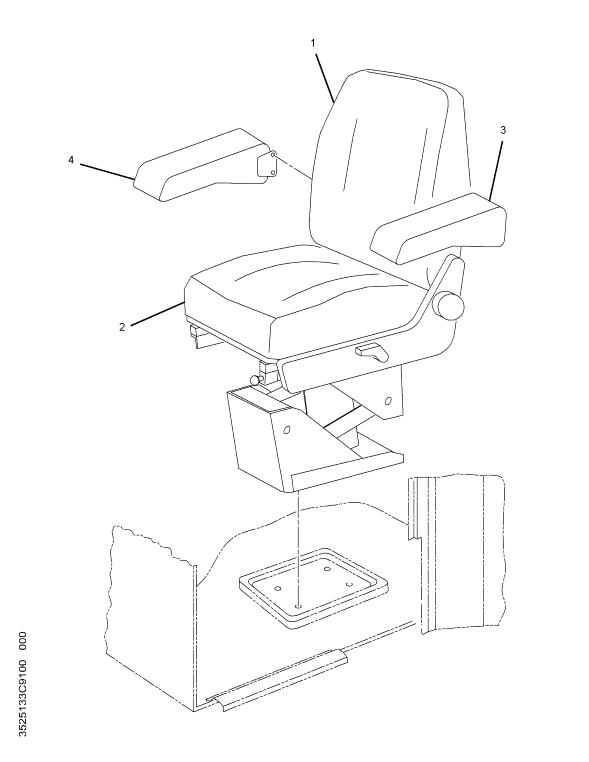

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, HIGH BACK SEAT BACK GRAY FABRIFORM | 1 | 2503309C91 |
| CUSHION, SEAT GRAY FABRIFORM | 1 | 2503310C91 |
| ARMREST GRAY DURAFORM LEFT HAND | 1 | 3525555C1 |
| VALVE, AIR LEVEL SEAT W/BRACKET | 1 | 1694360C91 |
CROSS REFERENCES
- SEARS M ZDWTR2439010
- SEARS M ZDWTR2439010
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
