3524934C92
SEAT, HIGH BACK DRIVER /PASSENGER GRAY MORDURA 296-20
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$939.95
$1,127.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK DRIVER /PASSENGER GRAY MORDURA 296-20

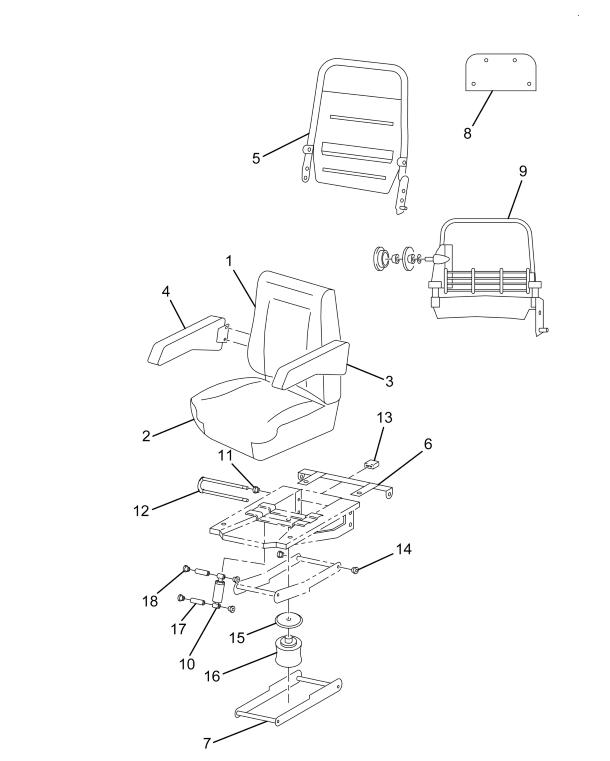

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, HIGH BACK SEAT BACK GRAY MORDURA | 1 | 1698953C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| SLEEVE SEAT MOUNTING SHAFT | 8 | 1660398C1 |
| RING, SNAP | 4 | 544968R1 |
| SHAFT ASSEMBLY, SEAT BASE | 2 | 483165C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502277C91 |
| BUMPER, SEAT FR | 1 | 337091C1 |
| BUSHING, SEAT ADJUSTER | 8 | 574906C1 |
| WASHER, AIR SPRING | 1 | 1660397C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| BUSHING, SHOCK ABSORBER SEAT | 2 | 337088C1 |
| BUSHING, SHOCK ABSORBER SEAT NYLON | 4 | 337087C1 |
| CUSHION, SEAT GRAY MORDURA | 1 | 1697891C92 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
| CUSHION, SEAT GRAY MORDURA | 1 | 1697891C91 |
| ARMREST GRAY MORDURA LEFT HAND | 1 | 2507961C1 |
| ARMREST GRAY MORDURA LEFT HAND | 1 | 1697888C1 |
| ARMREST GRAY MORDURA RIGHT HAND | 1 | 2030151C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2502294C1 |
| BRACKET, SEAT MOUNTING | 2 | 2501370C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501354C1 |
| ARM, LOWER W/BUSHINGS | 1 | 2502317C91 |
| PAD, SEAT CRASH | 1 | 1698956C1 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| NUT, 5/16-18 LOCK | 8 | NS17706049 |
| ELBOW, 90 DEGREE BARBED | 1 | NS18002753 |
| FITTING, "T" HOSE QUICK DISCONNECT 1/4" O.D. | 1 | 2502986C1 |
| SUPPORT, FLEX-O-LATOR | 1 | 1660400C1 |
CROSS REFERENCES
- NATL ST &69390.42AOOD
- NATL ST &69390.42AOOD
- NATL ST 59390.42A00D
- NATL ST 59390.42A00D
- NATL ST 69390.42A00D
- NATL ST 69390.42A00D
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
