3521678C91

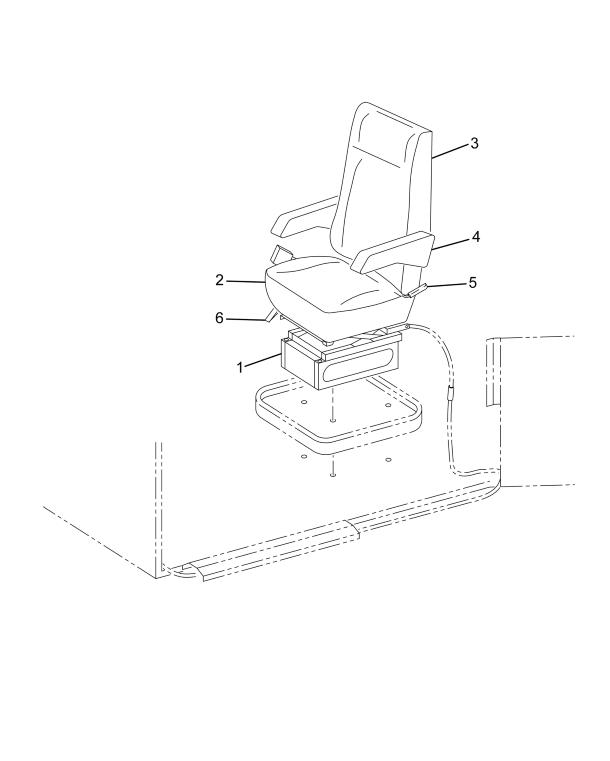

SEAT, HIGH BACK DRIVERS CHARCOAL VINYL T914
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$419.95
$503.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK DRIVERS CHARCOAL VINYL T914
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| RISER, SEAT SUPPORT | 1 | 1691515C1 |
| RISER, SEAT SUPPORT | 1 | 1697597C1 |
| COVER, SEAT CUSHION SEAT BOTTOM CHARCOAL VINYL | 1 | 2502141C1 |
| PAD, SEAT CUSHION | 1 | 1699241C1 |
| COVER, HIGH BACK SEAT CUSHION SEAT BACK CHARCOAL VINYL | 1 | 2502142C1 |
| PAD, HIGH BACK SEAT BACK CUSHION | 1 | 1698425C1 |
| LEVER, OUTER SEAT | 1 | 1699628C1 |
| LEVER, INNER SEAT | 1 | 1691513C1 |
| LEVER, INNER SEAT | 1 | 1697595C1 |
| FR, SEAT HIGH BACK | 1 | 1697571C1 |
| SUPPORT, ASSEMBLY SEAT FOAM | 1 | 1697575C1 |
| PLATE SEAT UPPER WELDMENT | 1 | 1697581C92 |
| PLATE SEAT UPPER WELDMENT | 1 | 1697592C1 |
| KNOB, SEAT ADJUSTER TILT | 1 | 1693551C1 |
| KNOB, SEAT ADJUSTER TILT | 1 | 1697599C1 |
| HANDLE, SEAT RECLINER ADJUSTABLE | 1 | 1699558C1 |
CROSS REFERENCES
- BOSTROM 2341042-269
- BOSTROM 2341042-269
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
