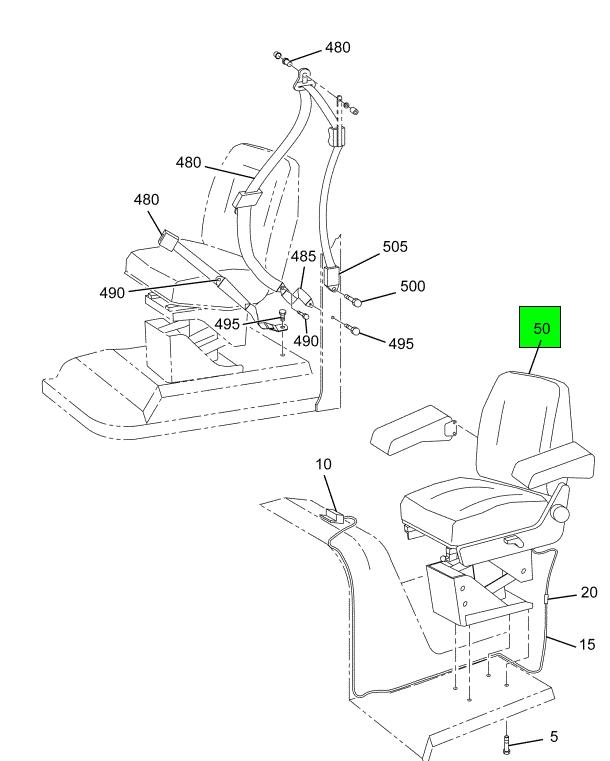

3519686C91
SEAT, HIGH BACK DRIVERS AIR SUSPENSION BROWN VELOUR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$719.95
$863.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, HIGH BACK DRIVERS AIR SUSPENSION BROWN VELOUR
Weight
105.22 lbs

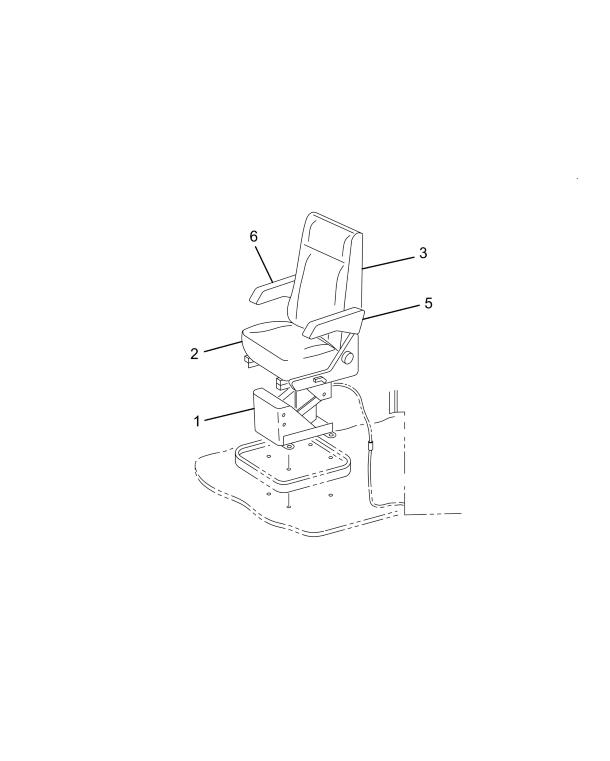

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BASE, DRIVERS SEAT MOUNTING SWIVEL | 1 | NSSK144815 |
| BASE, DRIVERS SEAT MOUNTING SWIVEL | 1 | 2501702C1 |
| CUSHION, SEAT BOTTOM BROWN VELOUR | 1 | 2501743C91 |
| CUSHION, HIGH BACK SEAT BACK BROWN VELOUR | 1 | 2501744C91 |
| ARMREST BROWN VELOUR LEFT HAND | 1 | 1694768C1 |
| ARMREST BROWN VELOUR RIGHT HAND | 1 | 2026244C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 1698111C1 |
| SUPPORT, SEAT | 1 | 1699844C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2500135C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BUMPER, STOP SEAT DOWN RUBBER | 1 | 1698198C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| COVER, SEAT BASE SUSPENSION | 1 | 1698112C1 |
| PAD, SEAT CRASH | 1 | 1698956C1 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| PEDESTAL, SEAT COMPLETE BASE AND UPRIGHT | 1 | 2503846C91 |
| PEDESTAL, SEAT COMPLETE BASE W/SWIVEL | 1 | 2502312C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2502295C1 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
