3518446C91
SEAT PASS 2197-18" SWL BLU V/V
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$589.95
$707.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, PASSENGER HIGH AIR BLUE VIN/VEL EAGLE 16RMM
Weight
99.9988 lbs

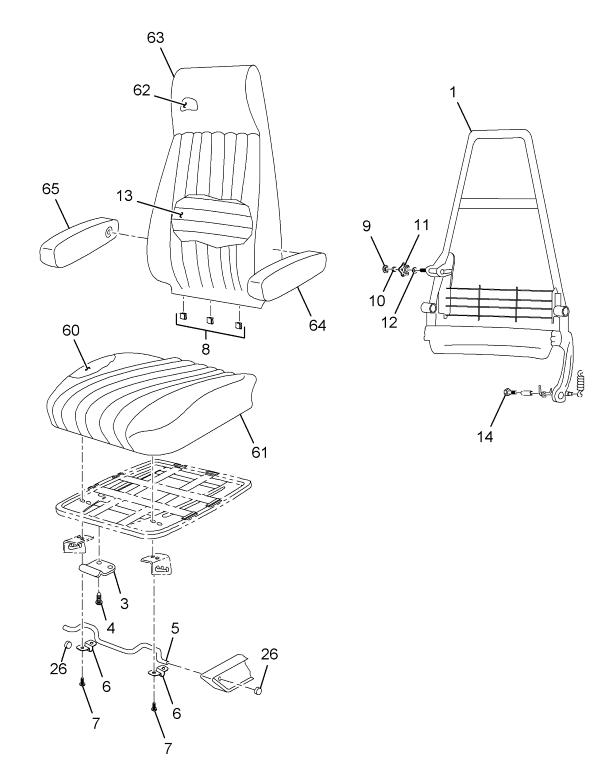

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT BACK HIGH BACK | 1 | 2502299C1 |
| KNOB, LUMBAR ADJUSTING | 1 | 573754C1 |
| WASHER, PLASTIC SEAT ADJUSTER | 1 | 1660399C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| BOLT, BACKREST PIVOT | 2 | 1685447C1 |
| PLATE, SEAT BACK W/WELD NUT | 1 | 1685450C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| KNOB, SEAT ADJUSTING HANDLE | 1 | 1685454C1 |
| HANDLE, LOCK SEAT ISOLATOR | 1 | 1685457C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501751C1 |
| LATCH, ADJUSTABLE SEAT BACK LOCK | 1 | 1685459C1 |
| PLATE SEAT ISOLATOR LOCK | 1 | 1685460C1 |
| SPRING, SEAT ADJUSTER | 1 | 1685463C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
| BRACKET, SEAT HAND PUMP MOUNTING | 1 | 2503101C1 |
| PUMP, HAND SEAT | 1 | 2501359C1 |
| HANDLE, SEAT PUMP (SEAT) | 1 | 2503102C1 |
| HANDLE ,6 POSITIVE FRONT CUSHION ADJSTR | 1 | 385507C1 |
| GRIP, PUMP HANDLE SEAT | 1 | 2503103C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| HOSE FUEL 1/4 IN ID | 1 | 997161R1 |
| RETAINER, UPPER HOSE CONNECTOR | 1 | 1660395C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C2 |
| TRACK, SEAT ADJUSTER | 1 | 1685466C1 |
| KNOB, SEAT ADJUSTER | 1 | 583424C1 |
| RING, SNAP | 4 | 544968R1 |
| SLEEVE SEAT MOUNTING SHAFT | 8 | 1660398C1 |
| BUSHING, SEAT ADJUSTER | 8 | 574906C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BUSHING, SHOCK ABSORBER SEAT NYLON | 4 | 337087C1 |
| ROD, ADJUSTABLE CUSHION | 1 | 1685443C1 |
| BUSHING, SHOCK ABSORBER SEAT | 2 | 337088C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| WASHER, AIR SPRING | 1 | 1660397C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502320C91 |
| ABSORBER, SHOCK ABSORBER SEAT CHUGGER | 1 | 1685470C91 |
| BUMPER, SEAT FR | 1 | 337091C1 |
| ARM, LOWER W/BUSHINGS | 2 | 2502317C91 |
| BASE, MOUNTING SWIVEL SEAT PASSENGER | 1 | 2501823C1 |
| RETAINER, SEAT CUSHION ADJUSTER | 2 | 1685444C1 |
| COVER, SEAT CUSHION SEAT BOTTOM BLUE VELOUR/VINYL | 1 | 2502404C1 |
| COVER, HIGH BACK SEAT CUSHION SEAT BACK BLUE VINYL/VELOUR | 1 | 2501906C1 |
| REST, ARM LH BLUE VN | 1 | 1695608C1 |
| ARMREST BLUE VINYL RIGHT HAND | 1 | 1695609C1 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| CLEVIS HAND PUMP | 1 | 2507418C1 |
| NUT, 5/16-18 LOCK | 10 | NS17706049 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
