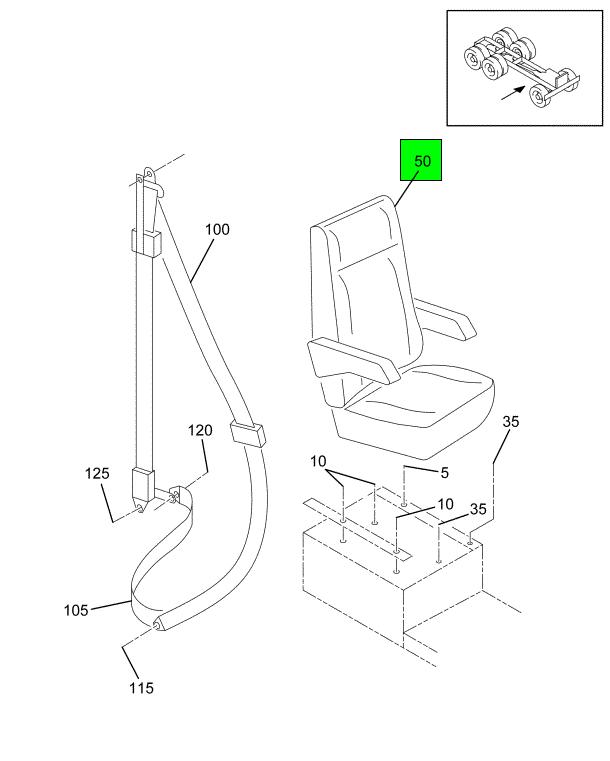

3518060C91
SEAT, MID BACK PASSENGER BLUE MORDURA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$429.95
$515.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, MID BACK PASSENGER BLUE MORDURA

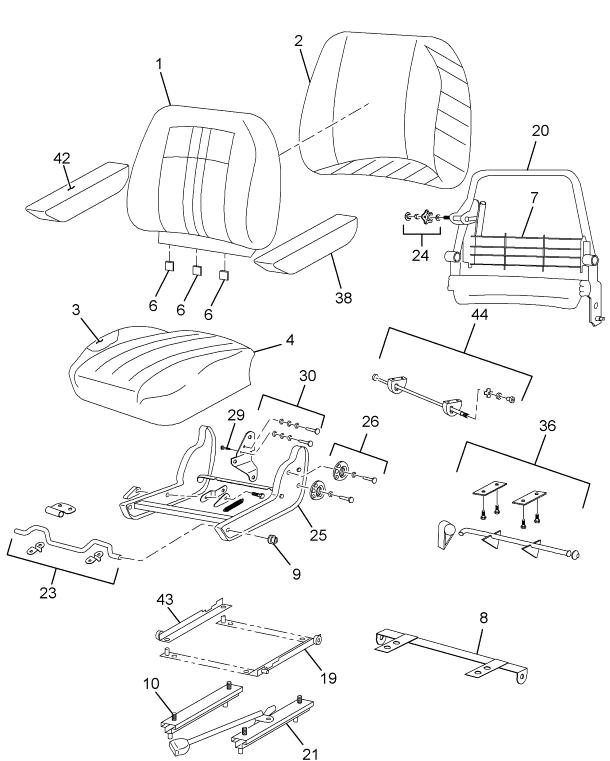

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COVER, MID BACK SEAT CUSHION SEAT BACK BLUE MORDURA | 1 | 2502597C1 |
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| KIT, SEAT MOUNTING BRACKETS | 1 | 594691C1 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| ARMREST BLUE MORDURA LEFT HAND | 1 | 2515065C1 |
| ARMREST BLUE MORDURA LEFT HAND | 1 | 2029135C1 |
| ARMREST BLUE MORDURA RIGHT HAND | 1 | 1697378C1 |
| BRACKET, RIGHT SEAT MOUNTING | 1 | 2500947C1 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| SUPPORT, FLEX-O-LATOR | 1 | 1660400C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 1696988C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 1698054C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
CROSS REFERENCES
- NATL ST &9321.40A02C
- NATL ST &9321.40A02C
- NATL ST 9321.40A02C
- NATL ST 9321.40A02C
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
