3517650C92
SEAT, HIGH BACK PASSENGER CHARCOAL MORDURA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$649.95
$779.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK PASSENGER CHARCOAL MORDURA

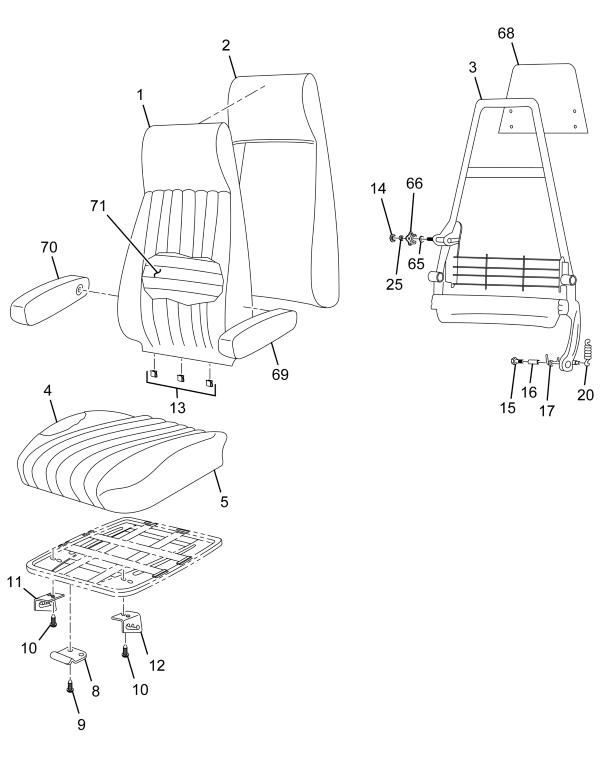

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COVER, HIGH BACK SEAT CUSHION SEAT BACK CHARCOAL MORDURA | 1 | 2502124C1 |
| BRACKET, FRONT CUSHION R.H. | 1 | 337106C1 |
| BRACKET, CUSHION FRONT L.H. | 1 | 337105C1 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| BOLT, SHOULDER PIVOT | 1 | 499901C1 |
| SPRING, SEAT LUMBAR ADJUSTER AIR | 1 | 1685748C91 |
| VALVE, AIR LEVEL SEAT | 1 | 337090C91 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 2 | 571156C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2502297C1 |
| HOSE FUEL 1/4 IN ID | 1 | 997161R1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 1691483C1 |
| RETAINER, UPPER HOSE CONNECTOR | 1 | 1660395C1 |
| BUMPER, SEAT FR | 1 | 337091C1 |
| SHAFT ASSEMBLY, SEAT BASE | 2 | 483165C1 |
| BUSHING, SEAT ADJUSTER | 8 | 574906C1 |
| RING, SNAP | 4 | 544968R1 |
| SLEEVE SEAT MOUNTING SHAFT | 1 | 1660398C1 |
| WASHER, AIR SPRING | 2 | 1660397C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502318C91 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BUSHING, SHOCK ABSORBER SEAT NYLON | 4 | 337087C1 |
| BUSHING, SHOCK ABSORBER SEAT | 2 | 337088C1 |
| WASHER, PLASTIC SEAT ADJUSTER | 1 | 1660399C1 |
| KNOB, SEAT LUMBAR ADJUSTER | 1 | 1677236C1 |
| PAD, SEAT CRASH | 1 | 1698956C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| HANDLE ,6 POSITIVE FRONT CUSHION ADJSTR | 1 | 385507C1 |
CROSS REFERENCES
- NATL ST &79313.42A02G
- NATL ST &79313.42A02G
- NATL ST 79313.42A02G
- NATL ST 79313.42A02G
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
