3517097C91
SEAT DRS 2195-20 CHRCL VN/CLTH
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$749.95
$899.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER HIGH CHAR VIN/CLO CUS 16KGP
Weight
89.9998 lbs

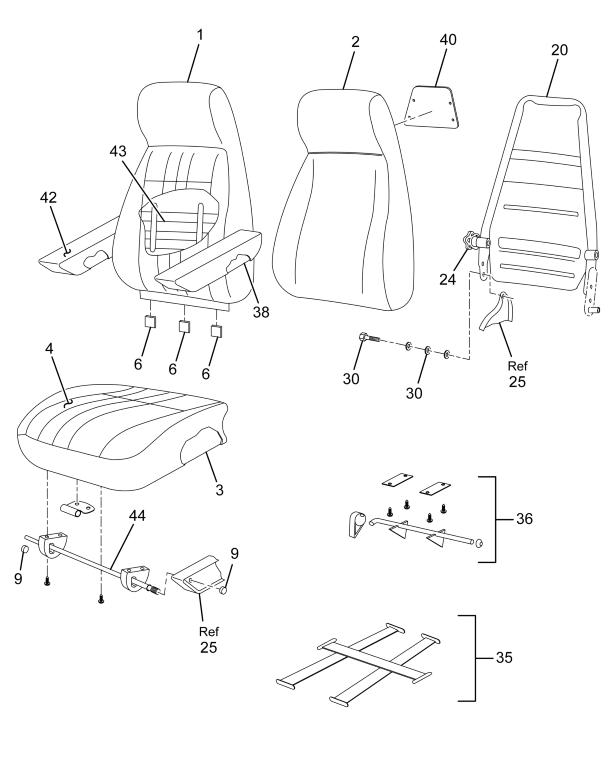

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COVER, HIGH BACK SEAT CUSHION SEAT BACK CHARCOAL VINYL/CLOTH | 1 | 2505590C91 |
| COVER, HIGH BACK SEAT CUSHION SEAT BACK CHARCOAL VINYL/CLOTH | 1 | 2502322C1 |
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| SUPPORT, SEAT | 1 | 1699844C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2500135C91 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| PEDESTAL, SEAT COMPLETE BASE AND UPRIGHT | 1 | 2503846C91 |
| PEDESTAL, SEAT | 1 | 1696989C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2502294C1 |
| BUMPER, STOP SEAT DOWN RUBBER | 1 | 1698198C1 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| ARMREST CHARCOAL VINYL LEFT HAND | 1 | 1698021C1 |
| COVER, SEAT SUSPENSION | 1 | 1698108C1 |
| COVER, SEAT CUSHION SEAT BOTTOM CHARCOAL VINYL/CLOTH | 1 | 2502353C1 |
| PAD, SEAT CRASH | 1 | 1698956C1 |
| ARMREST CHARCOAL VINYL RIGHT HAND | 1 | 2031243C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 1685749C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
