3512667C91

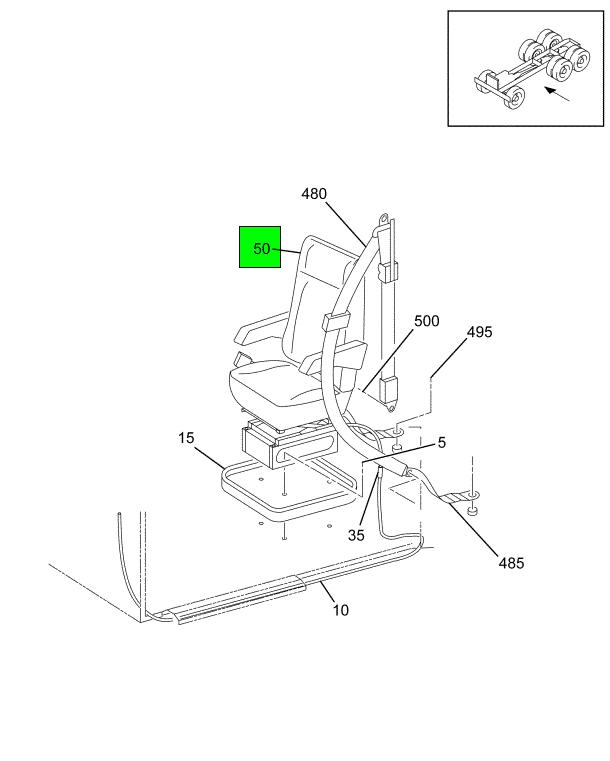

SEAT, HIGH BACK DRIVERS GRAY FABRIFORM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$669.95
$803.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, HIGH BACK DRIVERS GRAY FABRIFORM

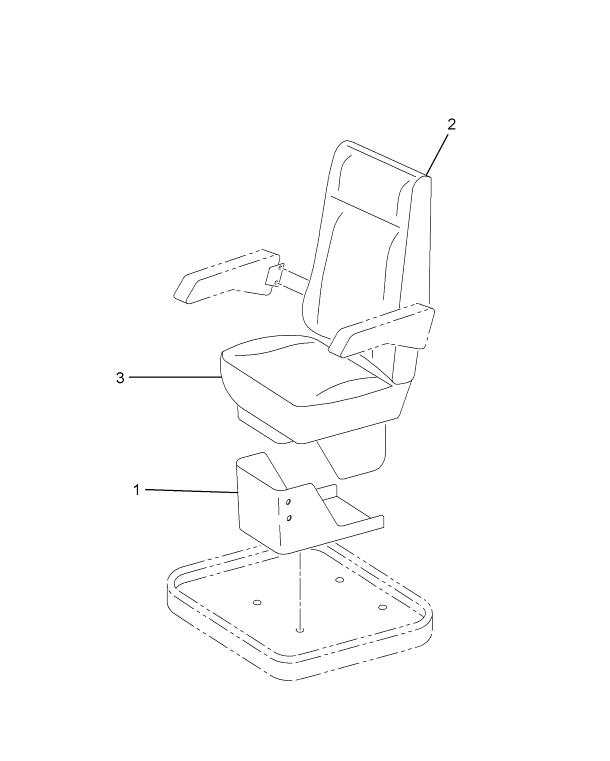

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| KIT, UPPER SEAT HOUSING | 1 | 1694367C91 |
| CUSHION, HIGH BACK SEAT BACK GRAY CLOTH | 1 | 2502020C91 |
| CUSHION, SEAT GRAY | 1 | 1698663C91 |
| VALVE, AIR LEVEL SEAT W/BRACKET | 1 | 1694360C91 |
| KIT, LOWER SEAT HOUSING W/LINK | 1 | 1694029C91 |
| KIT, SEAT ARM LINKAGE | 1 | 1694365C91 |
CROSS REFERENCES
- SEARS M SA13338.2SA
- SEARS M SA13338.2SA
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
