3508073C91
SEAT, MID BACK DRIVER CHARCOAL VELOUR W/HDREST
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$689.95
$827.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, MID BACK DRIVER CHARCOAL VELOUR W/HDREST
Weight
95.24 lbs

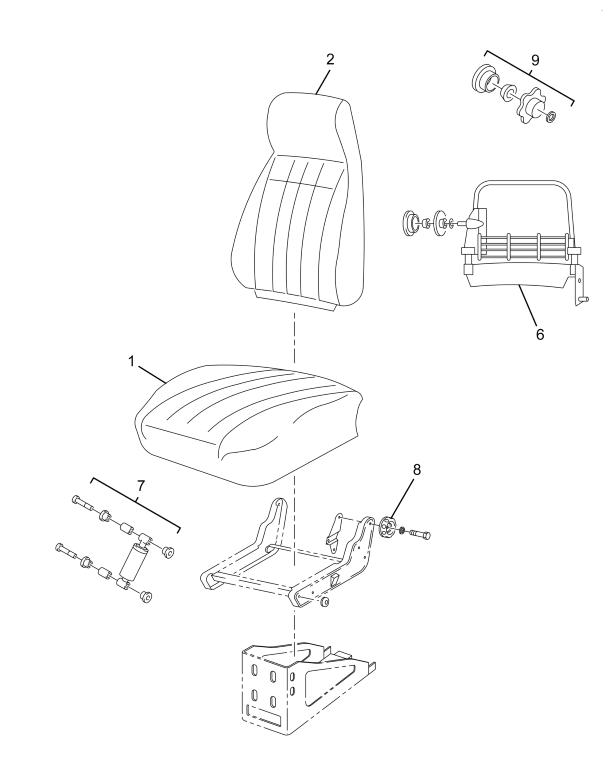

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT BACK CHARCOAL VELOUR | 1 | 1698799C91 |
| CUSHION, MID BACK SEAT BACK CHARCOAL VELOUR | 1 | 1698957C91 |
| PLATE, SEAT BACK W/WELD NUT | 1 | 1685450C1 |
| REST, HEAD CHARCOAL VELOUR | 1 | 1698195C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| SUPPORT, FLEX-O-LATOR | 1 | 1660400C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| WASHER SEAT ADJUSTER | 5 | 1685453C1 |
| KNOB, SEAT ADJUSTER | 1 | 583424C1 |
| KNOB, SEAT ADJUSTING HANDLE | 1 | 1685454C1 |
| HANDLE ,6 POSITIVE FRONT CUSHION ADJSTR | 1 | 385507C1 |
| ROD, ADJUSTABLE CUSHION | 1 | 1685443C1 |
| RETAINER, SEAT CUSHION ADJUSTER | 2 | 1685444C1 |
| HANDLE, LOCK SEAT ISOLATOR | 1 | 1685457C1 |
| LATCH, ADJUSTABLE SEAT BACK LOCK | 1 | 1685459C1 |
| PLATE SEAT ISOLATOR LOCK | 1 | 1685460C1 |
| SPRING, SEAT ADJUSTER | 1 | 1685463C1 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| TRACK, SEAT ADJUSTER | 1 | 1685466C1 |
| TRACK, SEAT ADJUSTER W/HANDLE | 1 | 1685467C1 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 2 | 571156C1 |
| BUSHING, SEAT ADJUSTER | 8 | 574906C1 |
| BUSHING, SHOCK ABSORBER SEAT NYLON | 4 | 337087C1 |
| BUSHING, SHOCK ABSORBER SEAT | 2 | 337088C1 |
| PEDESTAL, SEAT | 1 | 1698110C91 |
| BOLT, BACKREST PIVOT | 2 | 1685447C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 12 | 1685452C1 |
| BOLT, SPECIAL SQUARE NECK | 1 | 1685455C1 |
| RING, SNAP | 4 | 544968R1 |
| COVER, SEAT BASE SUSPENSION | 1 | 1698112C1 |
| ARMREST CHARCOAL VELOUR LEFT HAND | 1 | 1698802C1 |
| ARMREST CHARCOAL VELOUR RIGHT HAND | 1 | 2038382C1 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2500551C1 |
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
| KNOB, LUMBAR ADJUSTING | 1 | 573754C1 |
CROSS REFERENCES
- NATL ST &59118.43AF16
