3503101C92
SEAT, MID BACK DRIVER BROWN VELOUR W/HDREST
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$979.95
$1,175.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, MID BACK DRIVER BROWN VELOUR W/HDREST

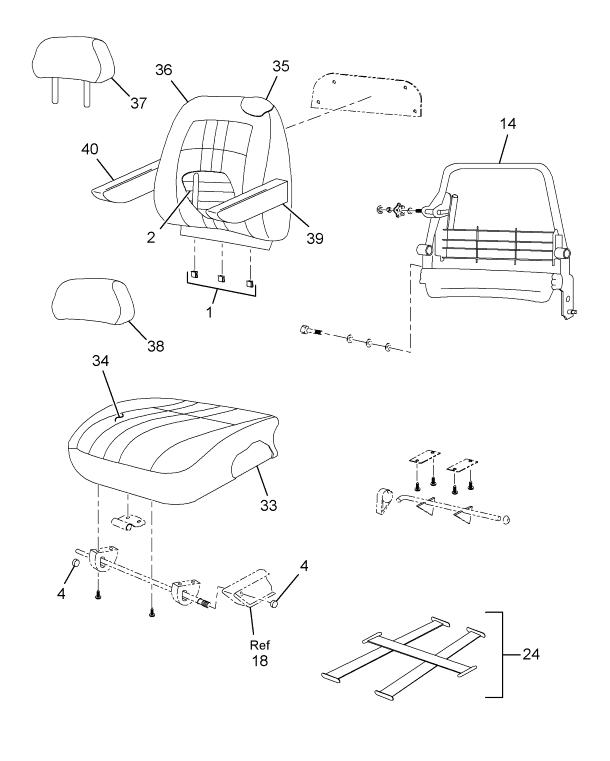

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| PEDESTAL, SEAT COMPLETE BASE W/SWIVEL | 1 | 2502312C91 |
| PEDESTAL, SEAT COMPLETE BASE AND UPRIGHT | 1 | 2503846C91 |
| BUMPER, STOP SEAT DOWN RUBBER | 1 | 1698198C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2503618C1 |
| COVER, SEAT SUSPENSION | 1 | 1698108C1 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| BRACKET, MOUNTING SEAT BELT | 1 | 1698111C1 |
| CUSHION, SEAT BROWN | 1 | 1694767C91 |
| CUSHION, MID BACK SEAT BACK BROWN VELOUR | 1 | 2504119C91 |
| REST, HEAD BROWN VELOUR | 1 | 1696980C91 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| SUPPORT, SEAT | 1 | 1699844C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2500135C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
CROSS REFERENCES
- NATL ST &59405.43AF12
- NATL ST &59405.43AF12
- NATL ST 59405.43AF12
- NATL ST 59405.43AF12
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
