3501971C91
SEAT DRS MID W/HDRST GRY VLR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$709.95
$851.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, MID BACK DRIVER GRAY VELOUR W/HDREST

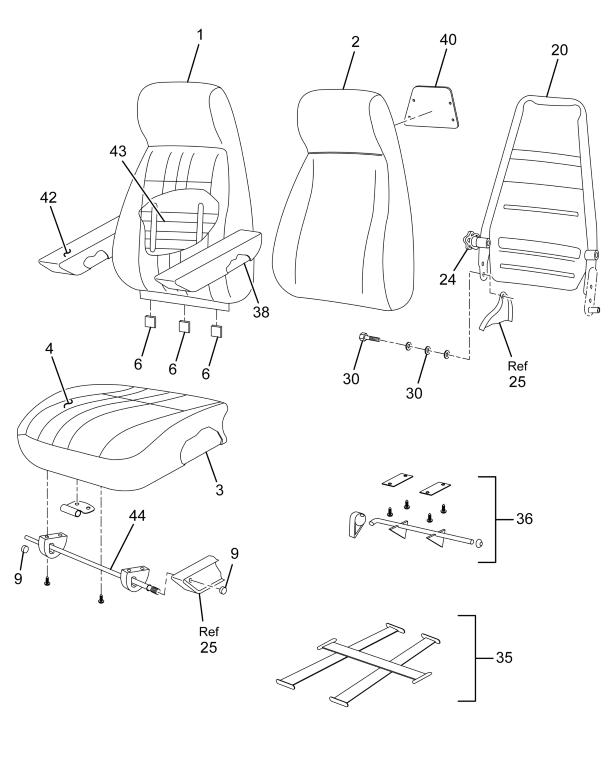

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| SUPPORT, SEAT | 1 | 1699844C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| PEDESTAL, SEAT COMPLETE BASE AND UPRIGHT | 1 | 2503846C91 |
| BASE, DRIVER SEAT MOUNTING | 1 | 1699958C91 |
| BASE SEAT MOUNTING SWIVEL | 1 | 1698191C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2502295C1 |
| BUMPER, STOP SEAT DOWN RUBBER | 1 | 1698198C1 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| ARMREST CHARCOAL VINYL LEFT HAND | 1 | 1698021C1 |
| PAD, SEAT CRASH | 1 | 1698956C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 1698111C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
