2235810C92
SEAT DRIVER NAT AIR 52 VNL GEAR W
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$989.95
$1,187.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT DRIVER NAT AIR 52 VNL GEAR W

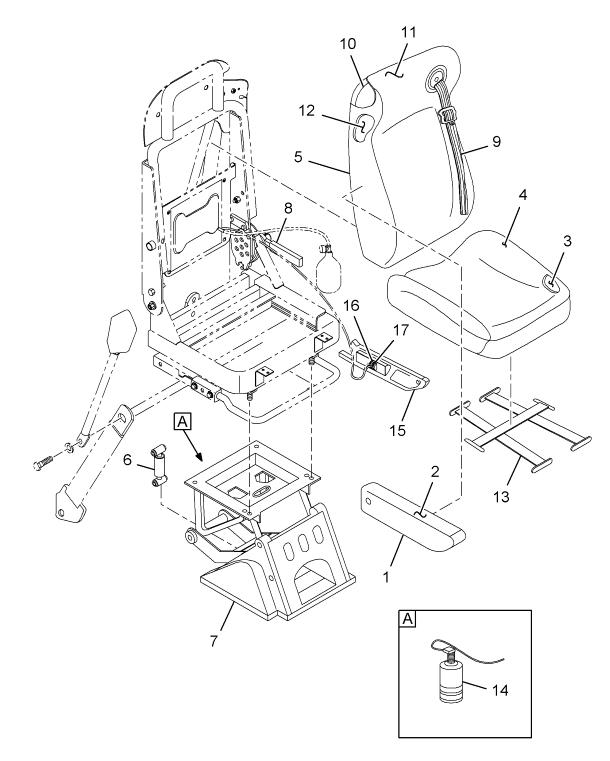

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ARMREST DRIVER ASSEMBLY W/UPHOLSTERY | 1 | 2593744C91 |
| PAD, BACK | 1 | 2594635C1 |
| UPHOLSTERY BACK DRIVER SEAT | 1 | 2596547C1 |
| FOAM, BACK | 1 | 2594634C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| VALVE, AIR SUSPENSION BASE | 1 | 2592227C1 |
| VALVE, LUMBAR CONTROL | 1 | 2592228C1 |
| UPHOLSTERY RIGHT HAND ARMREST | 1 | 2587082C1 |
| FOAM, CUSHION SEAT | 1 | 2594631C1 |
| UPHOLSTERY CUSHION DRIVER SEAT | 1 | 2596546C1 |
| SEAT SEATBACK UPPER COMPLETE | 1 | 2607119C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BASE, DRIVER SEAT | 1 | 2595762C91 |
| BOOT, TRIM HANDLE | 1 | 2592038C1 |
| BELT, SEAT W/RETRACTOR ORANGE | 1 | 2600678C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
