2235788C92
SEAT DRIVER NAT AIR 42 VNL BR W
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$989.95
$1,187.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT DRIVER NAT AIR 42 VNL BR W

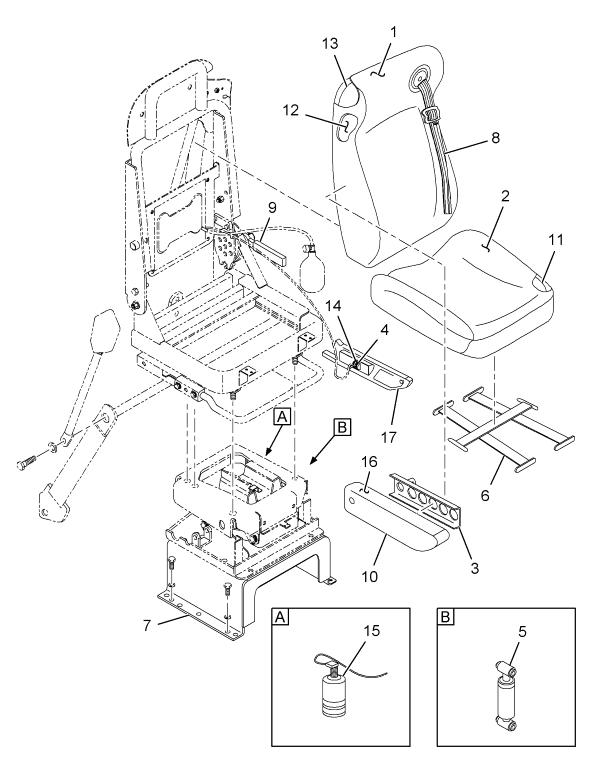

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ARMREST, DRIVER W/UPHOLSTERY | 1 | 2592233C91 |
| PAD, BACK | 1 | 2594635C1 |
| VALVE, AIR SUSPENSION BASE | 1 | 2592227C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| ARMREST DRIVER FR W/O UPHOLSTERY | 1 | 2594636C1 |
| VALVE, LUMBAR CONTROL | 1 | 2592228C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| BASE, DRIVER SEAT | 1 | 2595762C91 |
| BELT, SEAT W/RETRACTOR ORANGE | 1 | 2600678C91 |
| BOOT, TRIM HANDLE | 1 | 2592038C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
