2235538C92
SEAT DRIVER NATL SCA 42 VNL BEARING
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,099.95
$1,319.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT DRIVER NATL SCA 42 VNL BEARING

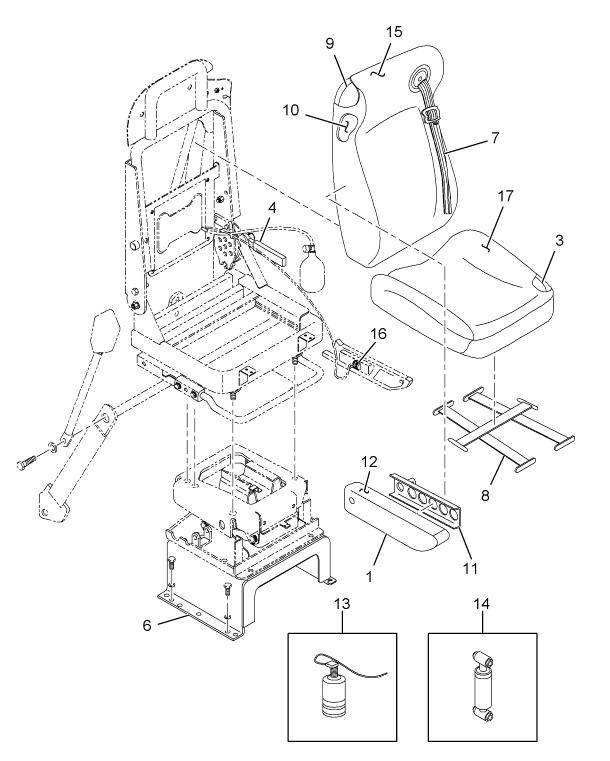

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ARMREST, DRIVER W/UPHOLSTERY | 1 | 2592233C91 |
| FOAM, BACK | 1 | 2594634C1 |
| ARMREST DRIVER FR W/O UPHOLSTERY | 1 | 2594636C1 |
| UPHOLSTERY, ARMREST | 1 | 2592234C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| UPHOLSTERY, SEAT BACK DRIVER* | 1 | 2610113C1 |
| VALVE, AIR LEVEL SEAT ELECTRIC PADDLE | 1 | 2508945C1 |
| UPHOLSTERY, SEAT CUSHION DRIVE | 1 | 2610112C1 |
| FOAM, CUSHION SEAT | 1 | 2594631C1 |
| BOOT, TRIM HANDLE | 1 | 2592038C1 |
| BASE, DRIVER SEAT | 1 | 2595762C91 |
| BELT, SEAT W/RETRACTOR ORANGE | 1 | 2600678C91 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| COMPRESSOR ASSEMBLY SEAT | 1 | 2513466C91 |
| PAD, BACK | 1 | 2594635C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
