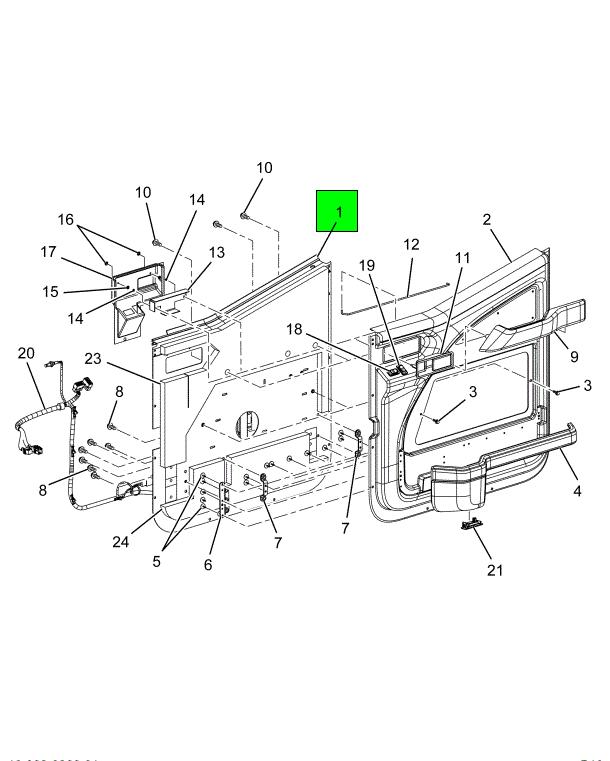

6127248C91
PANEL , RH, ASSEMBLY INNER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$729.95
$875.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.

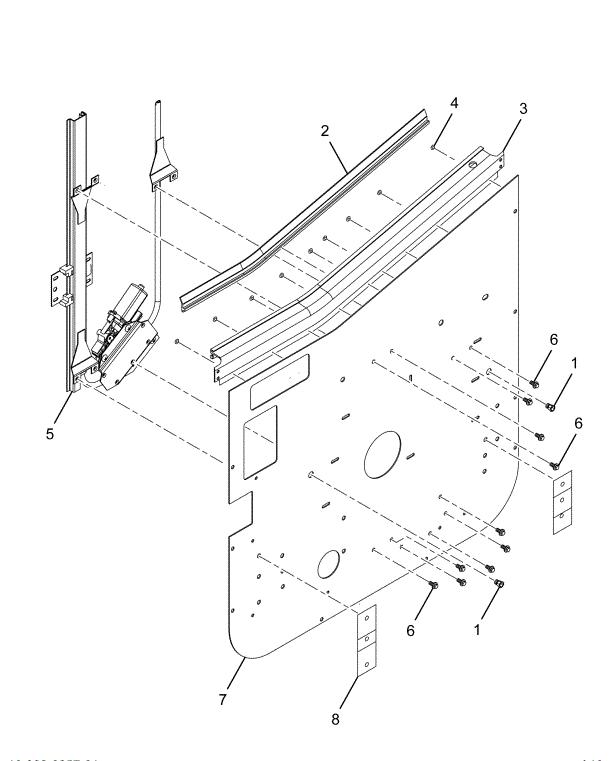

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| INSERT, THREADED OPEN END M6 | 2 | 3510918C1 |
| SEAL, DOOR GLASS INNER RIGHT | 1 | 3513549C1 |
| MOULDING, DOOR TRIM UPPER INNER RIGHT | 1 | 3513554C1 |
| RIVET, SPECIAL BLIND SELF PIECING #10 | 9 | 3532089C2 |
| REGULATOR, DOOR GLASS ELECTRIC RIGHT HAND | 1 | 3662378C91 |
| SCREW, HEXAGON HEAD 1/4-28 UNF X .50 | 10 | 443210001 |
| SCREW, HEXAGON HEAD 1/4-28 UNF X .50 | 10 | 3663771C1 |
| PANEL, DOOR INNER LEFT HAND, CARRIER | 1 | 6127249C1 |
| TAPE, TRIM 2 INCHES WIDE, 3179 * POLYETHYLENE | 4 | 3599933C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
