6104286C93

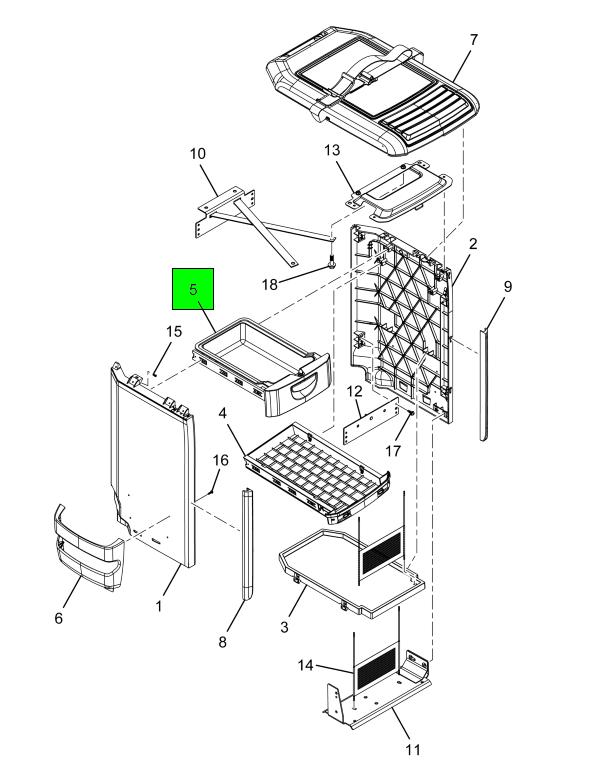

PANEL DRAWER ASSEMBLY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$184.95
$221.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL DRAWER ASSEMBLY
Weight
5.9884 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, DRAWER TUB | 1 | 3934320C3 |
| WASHER, FLAT M5 ZINC | 4 | 30481R1 |
| EXTENSION, DRAWER SLIDE | 2 | 3934318C1 |
| PANEL, DRAWER FASCIA | 1 | 3934319C2 |
| LATCH, LUGGAGE DOOR ROTARY | 1 | 3802691C1 |
| CLIP NUT #8, TAPPING STYLE | 4 | 3570297C1 |
| SCREW PAN HEAD TORX M 4 X 14MM | 7 | 3807410C1 |
| SCREW, PAN HEAD #8 X 3/4" | 4 | 27045R1 |
| SPACER, BUMPER RUBBER CABINET | 2 | 3822105C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
