4085248C91

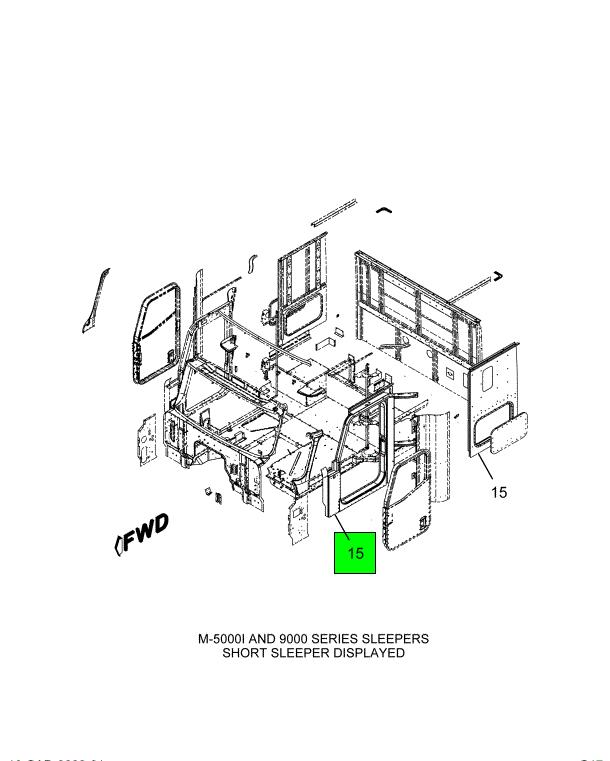

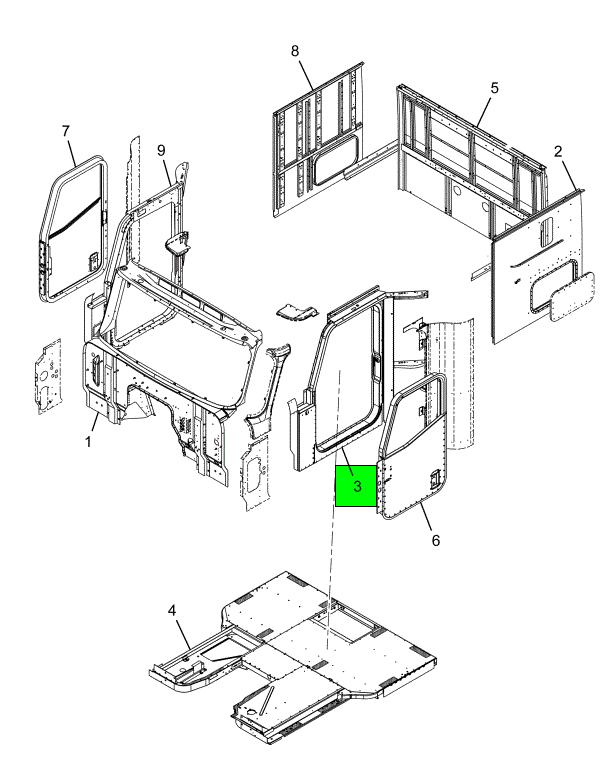

PANEL, BODY SIDE ASSY L, SLPR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,149.95
$2,579.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.

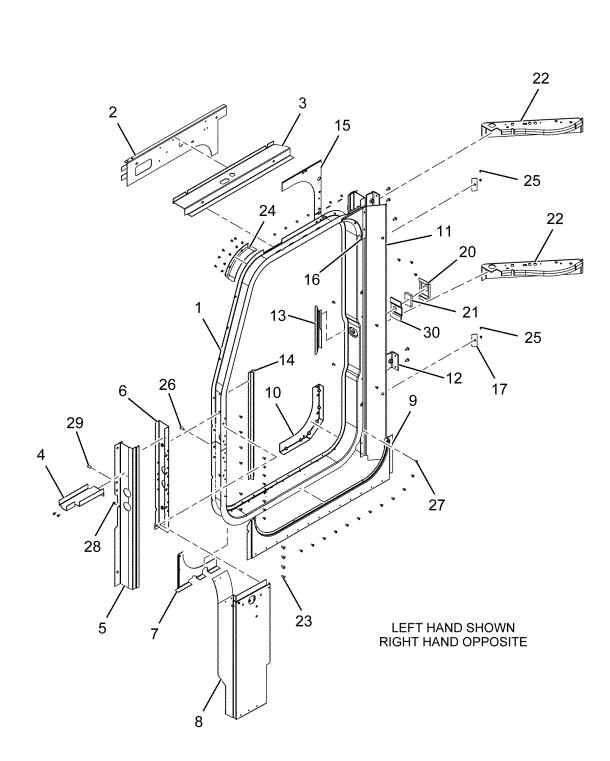

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, DOOR, DOOR | 1 | 3513655C5 |
| GUSSET, DOOR FR OPENING REAR LEFT, LOWER | 1 | 3518729C1 |
| REINFORCEMENT, OUTER LOCK PILLAR | 1 | 3522791C2 |
| BRACKET, FLOOR PANEL MOUNTING | 3 | 3524133C2 |
| FILLER, SIDE DOOR OPENING LEFT HAND | 1 | 3524223C1 |
| ANGLE, HINGE PILLAR SEAL RETAINER | 1 | 3524130C1 |
| GUSSET, DOOR FR OPENING REAR UPPER | 1 | 3541571C2 |
| EXTENSION, CAB PANEL OUTER LEFT REAR | 1 | 3540099C2 |
| PLATE, TAPPING GRAB HANDLE MOUNTING | 2 | 3524273C1 |
| PANEL, LEFT SIDE HEADER | 1 | 3513706C1 |
| RETAINER, TAPPING PLATE | 1 | 497458C1 |
| PLATE TAPPING | 1 | 496387C1 |
| GUSSET SIDE PANEL TO FILLER PANEL LEFT | 2 | 3533501C1 |
| RIVET, STEEL BLIND 1/4" .080-.375 GRIP | 10 | 2040959C1 |
| GUSSET, DOOR FR OPENING FRONT UPPER | 1 | 3528040C1 |
| RIVET SELF PIERCEING 5MM DIAMETER X 8 MM | 54 | 3540228C1 |
| NUT, RIVET STEEL 1/4" UNC | 2 | 797307C1 |
| RIVET, BLIND | 39 | 2040952C1 |
| NUT, RIVET 1/4" UNC | 1 | 795633C1 |
| NUT, RIVET PLUS STEEL | 2 | 283871C1 |
| REINFORCEMENT, LEFT SIDE DOOR HEADER | 1 | 3513737C3 |
| PLATE, STRIKER DOOR LOCK | 1 | 3527079C1 |
| REINFORCEMENT, LEFT COWL PANEL | 1 | 3513657C1 |
| PANEL, HINGE PILLER INNER, L | 1 | 3514220C5 |
| PLATE ASSEMBLY TAP HINGE MOUNTING LEFT HAND | 1 | 3543631C2 |
| GUSSET, DOOR OPENING FRONT /LOWER LEFT | 1 | 3513739C1 |
| PANEL ,- COWL SIDE OUTER- LEFT HAND | 1 | 4063164C1 |
| SILL, CAB FLOOR OUTER LEFT HAND | 1 | 3558747C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
