4049240C91

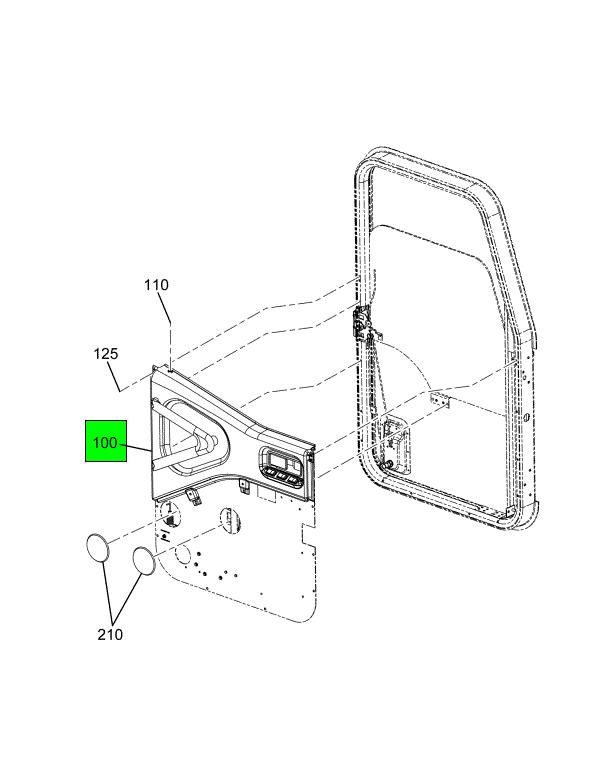

PANEL DOOR TRIM ASSEMBLY UPPER LEFT HAND EAGLE ELECTRICAL WINDOW
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,499.95
$1,799.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL DOOR TRIM ASSEMBLY UPPER LEFT HAND EAGLE ELECTRICAL WINDOW

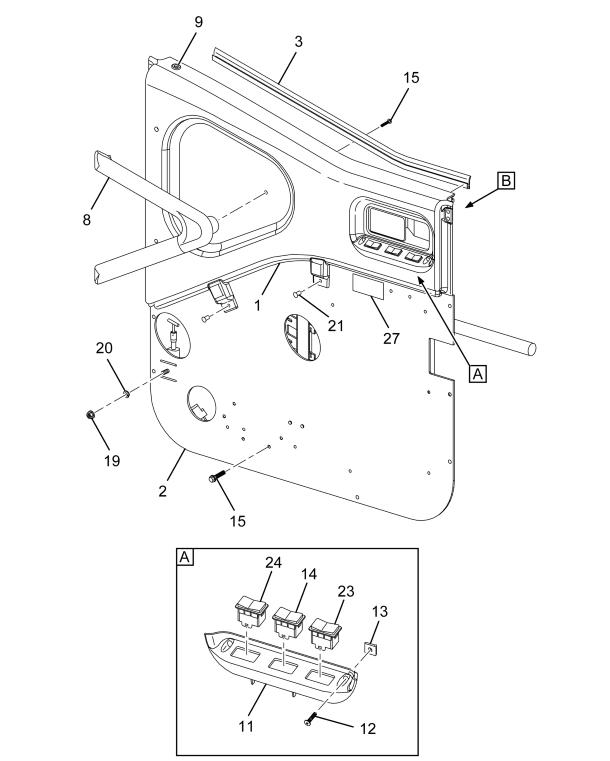

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, UPPER LEFT DOOR TRIM TAN POWER WINDOW | 1 | 3578324C1 |
| REGULATOR, DOOR GLASS ELECTRIC LEFT HAND | 1 | 3662377C91 |
| , DOOR SWITCH FOR 3 SWITCHES | 1 | 3578181C1 |
| SCREW, SPECIAL TAPPING | 2 | 501725C1 |
| NUT, SPEED #8-18 | 2 | 3504698C1 |
| SWITCH, WINDOW REGULATOR LEFT FOR RIGHT | 1 | 3536493C1 |
| SCREW, HEXAGON HEAD 1/4-28 UNF X .50 | 13 | 443210001 |
| SCREW, HEXAGON HEAD 1/4-28 UNF X .50 | 13 | 3663771C1 |
| INSULATOR, DOOR PANEL UPPER LEFT | 1 | 3525446C1 |
| HARNESS BODY ACCESSORY DOOR POWER WINDOW LOCK | 1 | 4049251C91 |
| MOTOR, CONTROL DOOR LOCK | 1 | 3662381C1 |
| NUT, HEXAGON FLANGE CLASS 10 M6 | 1 | 31109R1 |
| PANEL ASSEMBLY, DOOR INNER LEFT | 1 | 3519432C4 |
| WASHER, LOCK 6MM | 1 | 933833R1 |
| FASTENER, PINETREE NATURAL FLAT DOME | 2 | 3525973C1 |
| ROD, INNER DOOR CONTROL LEFT | 1 | 3539685C1 |
| SWITCH, DOOR WINDOW REGULATOR LEFT | 1 | 3536494C1 |
| SWITCH DOOR LOCK /UNLOCK | 1 | 3536496C1 |
| BAFFLE DOOR INSULATION W/ELECTRIC LOCK | 1 | 3555730C1 |
| NUT, PUSH ON SPEED NUT | 1 | 4025019R1 |
| TAPE, TRIM 2 INCHES WIDE, 3179 * POLYETHYLENE | 1 | 3599933C1 |
| LOOM, CABLE | 18 | 2643669R1 |
| SEAL, DOOR GLASS INNER LEFT | 1 | 3513548C1 |
| STRAP, ELECTRONIC CABLE, POWER WINDOW | 3 | 4025021R1 |
| HANDLE, DOOR INSIDE REMOTE LEFT | 1 | 3518516C91 |
| WASHER, LOCK # 10 NOM STEEL /ZNC | 2 | 120217 |
| NUT #10 UNC | 2 | 120361 |
| SUPPORT HANDLE DOOR* | 1 | 498720C1 |
| HANDLE, GRAB DOOR LEFT | 1 | 3518423C1 |
| FERRULE, LOCK BUTTON | 1 | 508332C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
