4046862C93
PANEL, ASSEMBLY ROOF CAB OUTER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,899.95
$3,479.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL, ASSEMBLY ROOF CAB OUTER

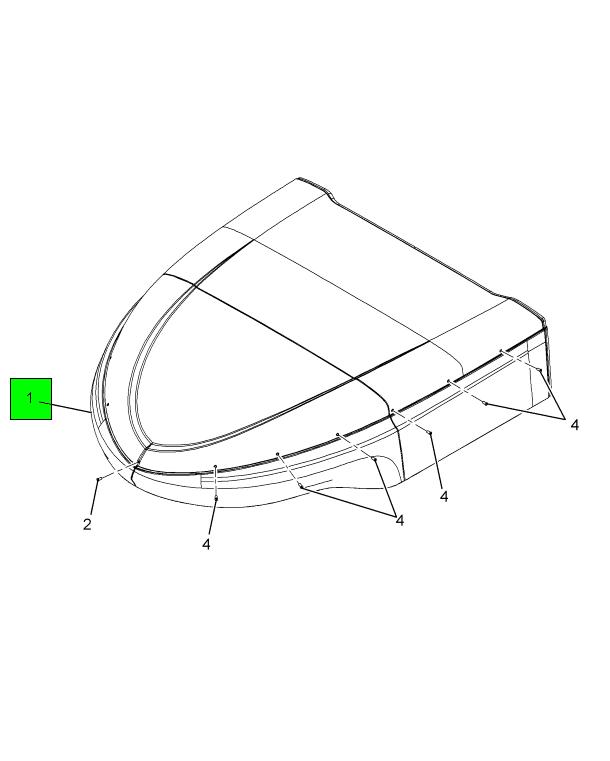

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, ASSEMBLY, ROOF CAB OUTER, FRONT | 1 | 3611033C96 |
| " NUT, THREADED INSERT"CLOSED SEALED | 4 | 3671358C1 |
| PANEL ASSEMBLY, ROOF CAB OUTER, REAR SHORT | 1 | 3611034C98 |
| REINFORCEMENT ROOF PANEL, LOWER BACK | 1 | 3595412C1 |
| REINFORCEMENT, ROOF PANEL | 1 | 6103695C1 |
| REINFORCEMENT, ROOF PANEL FRONT LOWER R | 1 | 6103696C1 |
| REINFORCEMENT ROOF PANEL SIDE SHORT SLEEPER L | 1 | 6103699C1 |
| REINFORCEMENT ROOF PANEL SIDE SHORT SLEEPER R | 1 | 6103700C1 |
| REINFORCEMENT ROOF PANEL LOWER REAR CORNER L | 1 | 6103701C1 |
| REINFORCEMENT ROOF PANEL LOWER REAR CRNR R | 1 | 6103702C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
