3870259C95
PANEL ASSEMBLY SLEEPER SIDE LEFT HAND W/110V TENT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$369.95
$443.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL ASSEMBLY SLEEPER SIDE LEFT HAND W/110V TENT
Weight
16 lbs

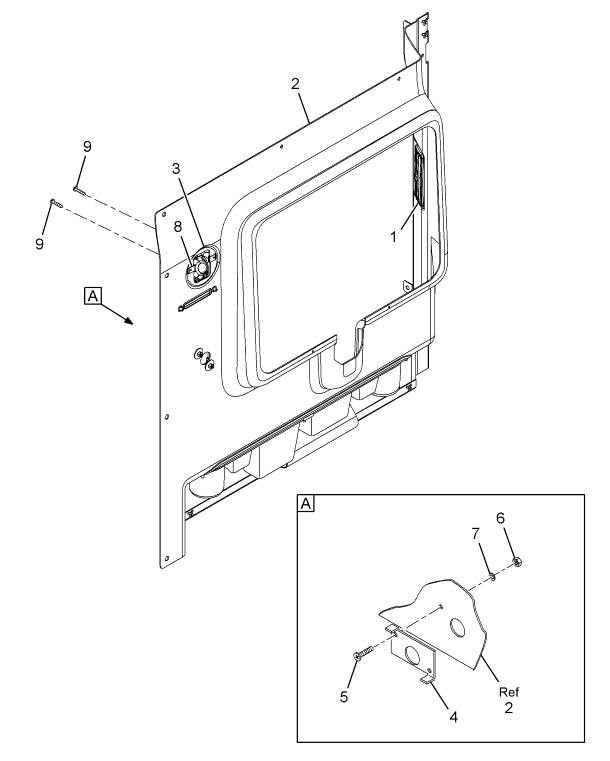

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| GRILLE ASSEMBLY, AIR CONDITIONER MEDIUM NEUTRAL | 1 | 3598230C2 |
| PANEL, SLEEPER SIDE L W/110V, TENT | 1 | 3870076C3 |
| LAMP, SWIVEL READING MEDIUM NEUTRAL | 1 | 3598894C2 |
| BASE, RECEPTCALE W/SHORE POWER 110 VOLT | 1 | 3573704C1 |
| SCREW PAN HEAD CR REC MACH SCREW 10-24 X 3/4 ZN | 2 | 26667R1 |
| SCREW PAN HEAD CR REC MACH SCREW 10-24 X 3/4 ZN | 2 | 159947 |
| NUT #10 UNC | 2 | 19910R1 |
| WASHER .06" THICK .194" I.D. X 1 1/16" O.D. | 2 | 250097R1 |
| NUT, PANEL M4.2 X 1.41 | 2 | 3601853C1 |
| SCREW, PAN HEAD #8 X 3/4" | 2 | 27045R1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
