3858691C95
PANEL LOWER FASCIA L ASSEMBLY LONG W/TRACK
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$479.95
$575.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL LOWER FASCIA L ASSEMBLY LONG W/TRACK
Package Dimensions
52.0 x 16.0 x 46.0 in
Weight
27.057 lb

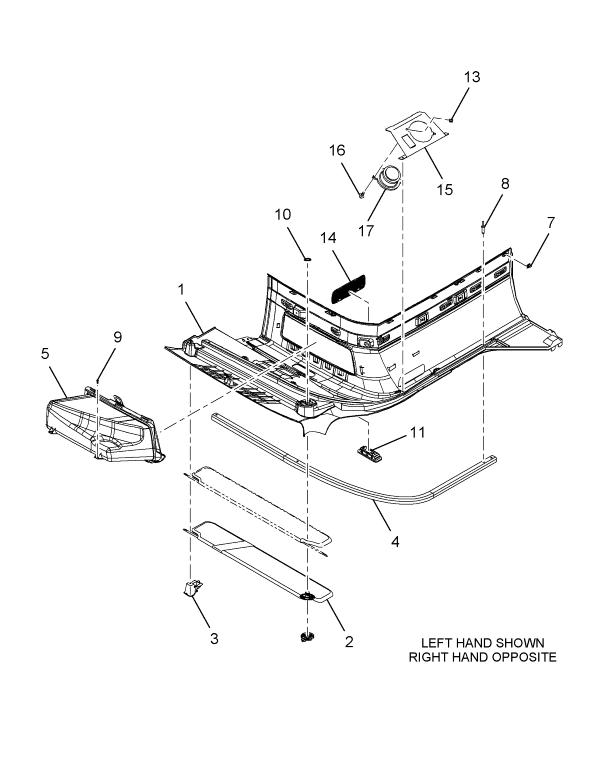

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL SIDE FASCIA L, LONG | 1 | 3715169C2 |
| FASTENER, SPEED NUT PUSH ON | 1 | 3620595C1 |
| LIGHT DOME OR SKY OHC MAP LIGHT | 1 | 3865519C92 |
| NUT, PANEL M4.2 X 1.41 | 2 | 3599207C2 |
| PANEL SPEAKER GRILLE | 1 | 3859572C1 |
| SUPPORT SPEAKER BRACKET | 1 | 3860272C1 |
| SCREW #8 X 5/8 HEXAGON HEAD TYPE BP | 2 | 3868468C1 |
| SPEAKER, RADIO DUAL CONE 3 1/2" | 1 | 3520852C1 |
| VISOR, SUN-LH | 1 | 3715187C1 |
| VISOR, SUN CLIP- LEFT HAND | 1 | 3715185C1 |
| TRACK, CURTAIN WINDSHIELD LEFT HAND | 1 | 3715183C1 |
| PANEL OHC BIN LEFT HAND | 1 | 3857721C1 |
| FASTENER, SPRING CLIP | 11 | 3616801C1 |
| RIVET, BLIND BLACK | 4 | 3615442C1 |
| SCREW TORX PLASTIC 4.5 X 1.41 X 14MM | 4 | 3810516C2 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
