3855977C94
PANEL OVER HEAD CONSOLE STANDARD WITH WELD ON
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$359.95
$431.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL OVER HEAD CONSOLE STANDARD WITH WELD ON

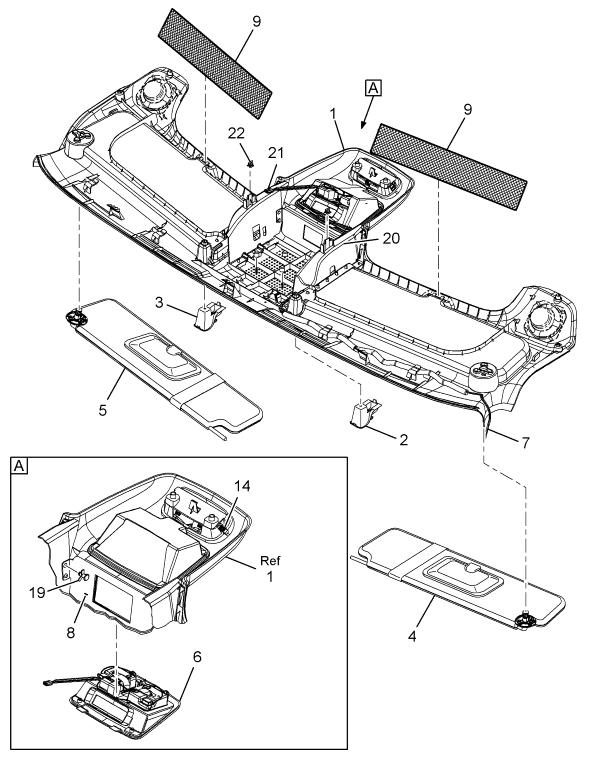

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, OVER HEAD CONSOLE | 1 | 3615177C3 |
| LIGHT, DOME | 1 | 3626066C1 |
| RIVET, BLIND 3/16" | 4 | 3808364C1 |
| CLIP, SUN VISOR ROD COOL GRAY LEFT HAND | 1 | 3599154C3 |
| CLIP, SUN VISOR ROD COOL GRAY LEFT HAND | 1 | 3599154C2 |
| PANEL, SIDE CLOSEOUT L | 1 | 6109614C1 |
| PANEL, SIDE CLOSEOUT R | 1 | 6109615C1 |
| FASTENER, SPRING CLIP | 2 | 3616801C1 |
| CLIP, SUN VISOR ROD COOL GRAY RIGHT HAND | 1 | 3599155C2 |
| VISOR, SUN MEDIUM NEUTRAL LEFT HAND | 1 | 3615175C1 |
| VISOR, SUN MEDIUM NEUTRAL RIGHT HAND | 1 | 3615176C1 |
| BEZEL, TRIM CENTER MEDIUM NEUTRAL | 1 | 3615172C1 |
| HARNESS, ELECTRICAL DOME /MAP LIGHT WIRING STANDARD TRIM WITHOUT CB RADIO RADIO | 1 | 3554613C92 |
| SUPPORT DATA RECORDER MOUNTING | 1 | 3853601C2 |
| NET, OVER HD CONSOLE RESTRAINT | 2 | 3600019C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
