3853599C94
PANEL, OVER HEAD CONSOLE, PREM WITH WELD ON
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$419.95
$503.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL, OVER HEAD CONSOLE, PREM WITH WELD ON

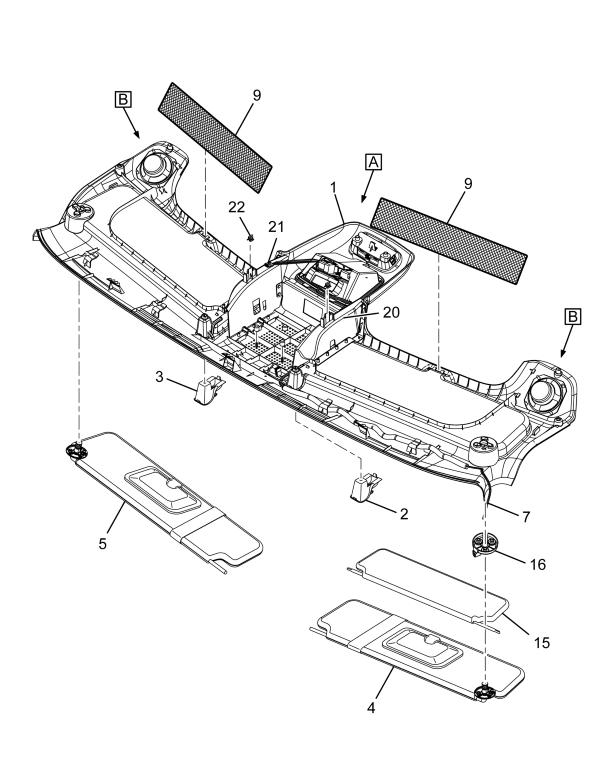

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, OVER HEAD CONSOLE | 1 | 3599152C4 |
| SPEAKER, RADIO COAXLE W/INTEGRAL PACKAGE 4" | 2 | 3544619C1 |
| GRILLE, RADIO SPEAKER DUAL CONE 4" | 2 | 2021111C1 |
| RETAINER, FASTENER | 2 | 1669001C91 |
| SCREW, SPECIAL TAPPING | 8 | 501725C1 |
| LIGHT, DOME | 1 | 3626066C1 |
| VISOR, SUN AUXILIARY BLADE COOL GRAY | 1 | 3599193C2 |
| VISOR SUN AUXILIARY BLADE ASSEMBLY BRACKET CAP LH | 1 | 3599194C3 |
| RIVET, BLIND 3/16" | 4 | 3808364C1 |
| CLIP, SUN VISOR ROD COOL GRAY LEFT HAND | 1 | 3599154C3 |
| CLIP, SUN VISOR ROD COOL GRAY LEFT HAND | 1 | 3599154C2 |
| PANEL, SIDE CLOSEOUT L | 1 | 6109614C1 |
| PANEL, SIDE CLOSEOUT R | 1 | 6109615C1 |
| FASTENER, SPRING CLIP | 2 | 3616801C1 |
| CLIP, SUN VISOR ROD COOL GRAY RIGHT HAND | 1 | 3599155C2 |
| VISOR, SUN ASSEMBLY LEFT HAND | 1 | 3614007C1 |
| VISOR, SUN MEDIUM NEUTRAL RIGHT HAND | 1 | 3615176C1 |
| BEZEL TRIM OVER HEAD CENTER CONSOLE ASSEMBLY W/LIGHTS | 1 | 3835278C91 |
| HARNESS, WIRING PRIMARY | 1 | 3817685C91 |
| SUPPORT DATA RECORDER MOUNTING | 1 | 3853601C2 |
| NET, OVER HD CONSOLE RESTRAINT | 2 | 3600019C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
