3804013C93
PANEL ASSEMBLY, SKIRT SLEEPER CHROME
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$659.95
$791.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL ASSEMBLY, SKIRT SLEEPER CHROME
Weight
7.9992 lbs

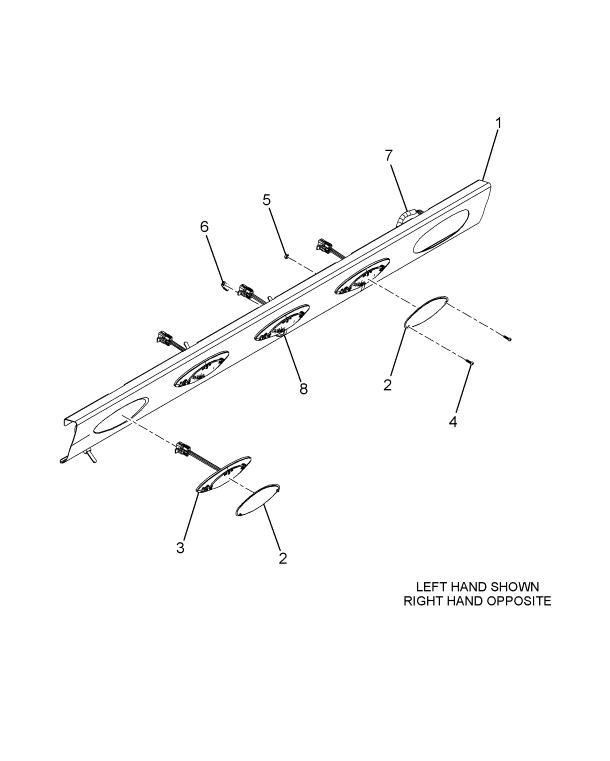

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL SLEEPER SKIRT RIGHT HAND CHROMED ASSEMBLY | 1 | 3821424C1 |
| BEZEL, MARKER LIGHT | 4 | 3664103C1 |
| LIGHT, SUN SHADE | 4 | 3664104C91 |
| SCREW, PAN HEAD #10 X 3/4" | 8 | 27217R1 |
| NUT #10 UNC | 8 | 19910R1 |
| CLAMP RUBBER COVERED 9/16" | 4 | 98959R1 |
| HARNESS, MODESTY SLEEPER PANEL WITH TURN SIGNAL | 1 | 3814237C92 |
| STRAP, CABLE LOCK | 4 | 306132C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
