3768583C94
Long Lower Fascia Assembly Left Hand Panel
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$689.95
$827.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL, LOWER FASCIA ASSEMBLY LEFT HAND, LONG
Weight
28.6 lb

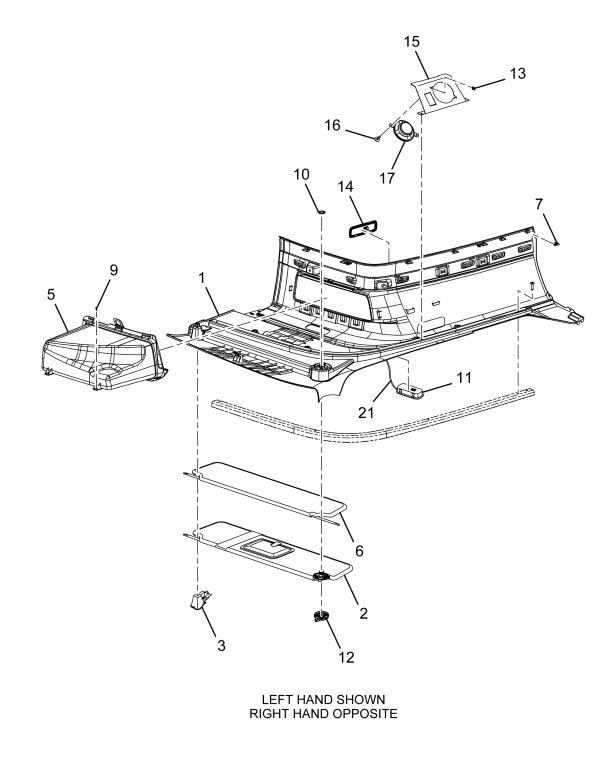

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, SIDE FASCIA W/SLOT LEFT HAND, LONG | 1 | 4068199C1 |
| FASTENER, SPEED NUT PUSH ON | 1 | 3620595C1 |
| LIGHT, OHC MAP LIGHT | 1 | 6103961C93 |
| VISOR SUN AUXILIARY BLADE ASSEMBLY BRACKET CAP LEFT HAND | 1 | 3715192C3 |
| NUT, PANEL M4.2 X 1.41 | 2 | 3599207C2 |
| PANEL SPEAKER GRILLE | 1 | 3859572C1 |
| SUPPORT SPEAKER BRACKET | 1 | 3860272C1 |
| SCREW #8 X 5/8 HEXAGON HEAD TYPE BP | 2 | 3868468C1 |
| SPEAKER, RADIO DUAL CONE 3 1/2" | 1 | 3520852C2 |
| VISOR, SUN, LH W/MIRROR DARK NEUTRAL | 1 | 3715189C3 |
| HARNESS, JUMPER, MAP LIGHT | 1 | 6110337C91 |
| VISOR, SUN, CLIP- LEFT HAND | 1 | 3715185C2 |
| PANEL OHC BIN LEFT HAND | 1 | 3857721C1 |
| VISOR, SUN AUXILIARY BLADE | 1 | 3715191C1 |
| FASTENER, SPRING CLIP | 11 | 3616801C1 |
| SCREW TORX PLASTIC 4.5 X 1.41 X 14MM | 4 | 3810516C2 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
