3768574C93
PANEL, LH, LOWER FASCIA ASSY W
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$799.95
$959.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.

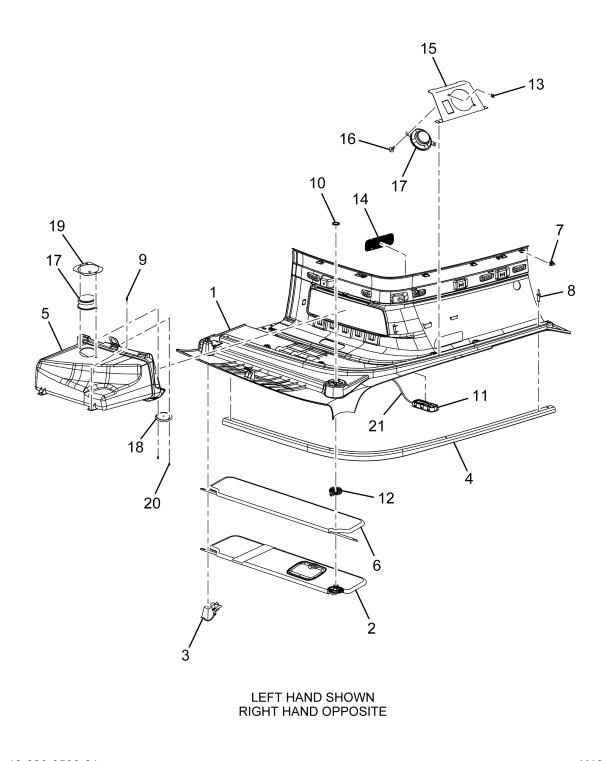

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, SIDE FASCIA W/SLOT LEFT HAND, SHORT | 1 | 4068207C1 |
| FASTENER, SPEED NUT PUSH ON | 1 | 3620595C1 |
| LIGHT, OHC MAP LIGHT | 1 | 6103961C93 |
| VISOR SUN AUXILIARY BLADE ASSEMBLY BRACKET CAP LEFT HAND | 1 | 3715192C3 |
| NUT, PANEL M4.2 X 1.41 | 2 | 3599207C2 |
| PANEL SPEAKER GRILLE | 1 | 3859572C1 |
| SUPPORT SPEAKER BRACKET | 1 | 3860272C1 |
| SCREW #8 X 5/8 HEXAGON HEAD TYPE BP | 2 | 3868468C1 |
| SPEAKER, RADIO DUAL CONE 3 1/2" | 2 | 3520852C1 |
| GRILLE, RADIO SPEAKER 3 1/2" | 1 | 3520853C1 |
| RETAINER, CB RADIO SPEAKER FASTENER | 1 | 3521569C1 |
| VISOR, SUN, LH W/MIRROR DARK NEUTRAL | 1 | 3715189C3 |
| SCREW, SPECIAL TAPPING | 2 | 501725C1 |
| HARNESS, JUMPER, MAP LIGHT | 1 | 6110337C91 |
| VISOR, SUN, CLIP- LEFT HAND | 1 | 3715185C2 |
| TRACK, CURTAIN WINDSHIELD LEFT HAND | 1 | 3715183C1 |
| PANEL, OHC BIN LEFT HAND W/TAKATA | 1 | 4029566C1 |
| VISOR, SUN AUXILIARY BLADE | 1 | 3715191C1 |
| FASTENER, SPRING CLIP | 10 | 3616801C1 |
| RIVET, BLIND BLACK | 4 | 3615442C1 |
| SCREW TORX PLASTIC 4.5 X 1.41 X 14MM | 4 | 3810516C2 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
