3727491C94
PANEL, ASSEMBLY, FRONT SKIRT EXTENSION, MIC, R
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$399.95
$479.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL, ASSEMBLY, FRONT SKIRT EXTENSION, MIC, R

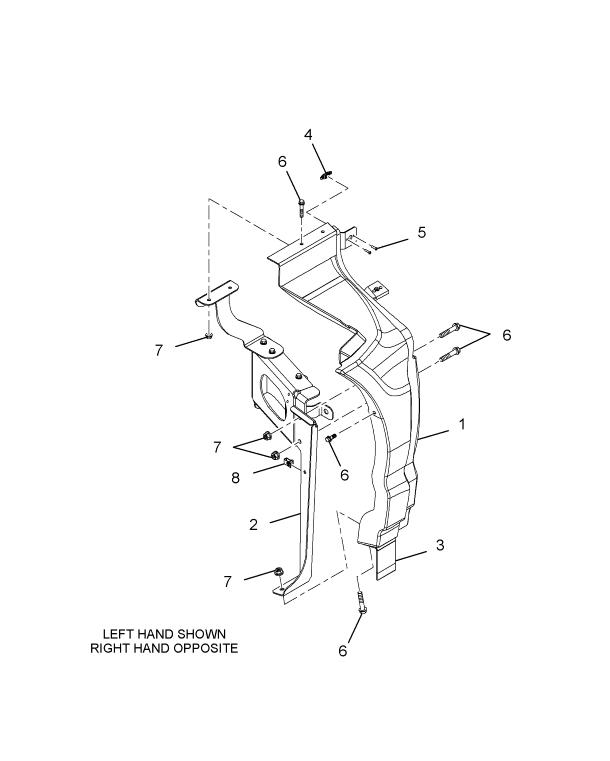

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, FR EXTENSION, MIC, R | 1 | 3897019C4 |
| SUPPORT PANEL FRONT EXTENSION ASSEMBLY R 122 | 1 | 3918139C2 |
| PANEL EXTENSION, FRONT, LEFT, D/C | 1 | 3896872C1 |
| FASTENER BASE, QUARTER TURN | 2 | 3896789C1 |
| FASTENER RIVET, 3.0MM X 7.1 | 4 | 3896790C1 |
| BOLT, FLANGE HEAD M8 X 30 | 6 | 3561048C1 |
| NUT, FLANGE M8 | 5 | 3544379C1 |
| NUT, SPECIAL LONG "U" NUT M8 X 1.25 | 1 | 3541323C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
