3727425C94
PANEL ASSEMBLY REAR SKIRT LONG AERO MIC R
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$769.95
$923.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL ASSEMBLY REAR SKIRT LONG AERO MIC R

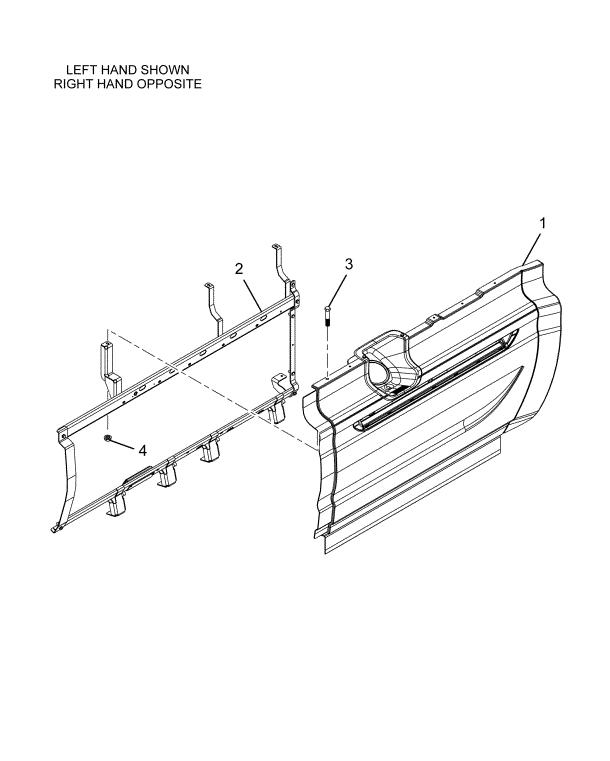

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, SUB_ASSY REAR SKIRT LONG AERO MIC,R | 1 | 3727522C93 |
| SUPPORT PANEL ASSEMBLY R REAR CHASSIS | 1 | 3907465C93 |
| BOLT, FLANGE HEAD M8 X 30 | 11 | 3561048C1 |
| NUT, FLANGE M8 | 11 | 3544379C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
