3726676C93
PANEL, LOWER FASCIA LEFT HAND ASSEMBLY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$519.95
$623.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL, LOWER FASCIA LEFT HAND ASSEMBLY

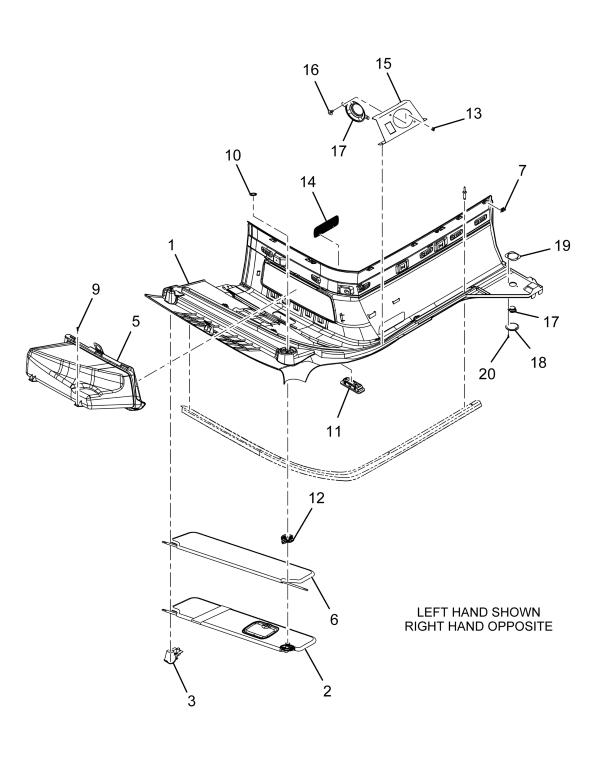

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL SIDE FASCIA LEFT HAND, LONG | 1 | 3726674C1 |
| FASTENER, SPEED NUT, PUSH ON | 1 | 3620595C1 |
| LAMP, MAP | 1 | 3865519C92 |
| VISOR SUN AUXILIARY BLADE ASSEMBLY BRACKET CAP LEFT HAND | 1 | 3715192C2 |
| NUT, M4.2 X 1.41 PANEL | 2 | 3599207C2 |
| PANEL, SPEAKER GRILLE | 1 | 3859572C1 |
| SUPPORT SPEAKER BRACKET | 1 | 3860272C1 |
| SCREW, NO. 8 X 5/8 HEX TYPE BP | 2 | 3868468C1 |
| SPEAKER, RADIO, 3-1/2, DUAL CONE | 2 | 3520852C1 |
| GRILLE, RADIO SPEAKER 3 1/2" | 1 | 3520853C1 |
| RETAINER, CB RADIO SPEAKER FASTENER | 1 | 3521569C1 |
| SUNVISOR, INTERIOR, LH W/ MIRROR DARK | 1 | 3715189C1 |
| SCREW, SPECIAL TAPPING | 2 | 501725C1 |
| VISOR, SUN CLIP- LEFT HAND | 1 | 3715185C1 |
| PANEL, OVER HEAD CONSOLE BIN | 1 | 3857721C1 |
| SUNVISOR, INTERIOR, AUX BL | 1 | 3715191C1 |
| FASTENER, SPRING CLIP | 11 | 3616801C1 |
| SCREW, TORX PLASTIC 4.5 X 1.41 X 14MM | 4 | 3810516C2 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
