3703292C92
PANEL SKIRT ASSEMBLY FRONT R, D/C 122
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$519.95
$623.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL SKIRT ASSEMBLY FRONT R, D/C 122

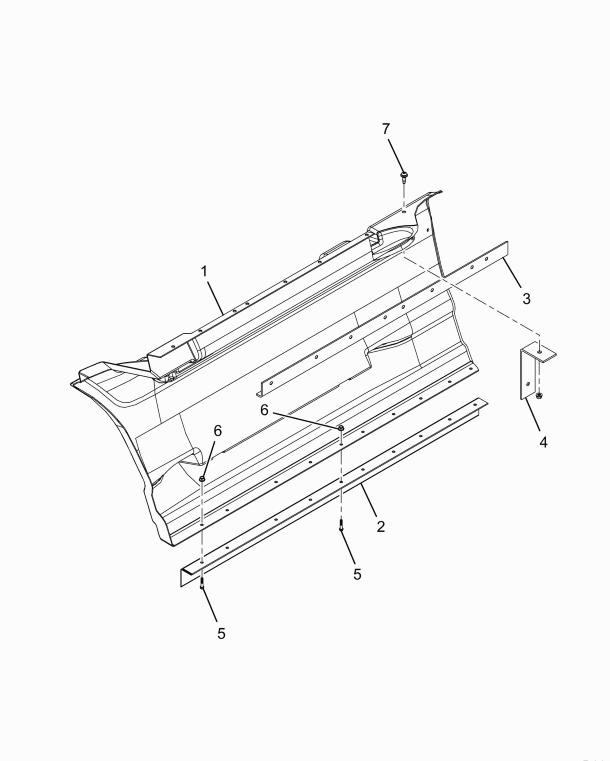

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL CHASSIS SKIRT FRONT, LEFT HAND DAYCAB | 1 | 3674624C2 |
| EXTENSION, CAB DAY FRONT RIGHT HAND | 1 | 3623577C1 |
| SUPPORT CHASSIS SKIRT RIGHT HAND D/C | 1 | 3844783C1 |
| SUPPORT DAY CAB CHASSIS SKIRT | 1 | 3840967C1 |
| BOLT, FLANGE HEAD M8 X 30 | 13 | 3561048C1 |
| NUT, FLANGE M8 | 12 | 3544379C1 |
| BOLT, SEMS ALL TORX M8 X 1.25 X 30 MM | 1 | 3588153C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
