3696030C6
PANEL COVER LEFT HAND FRONT DOOR INSIDE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,399.95
$6,479.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-017-000
OEM Description
PANEL COVER LEFT HAND FRONT DOOR INSIDE
Weight
5 lbs

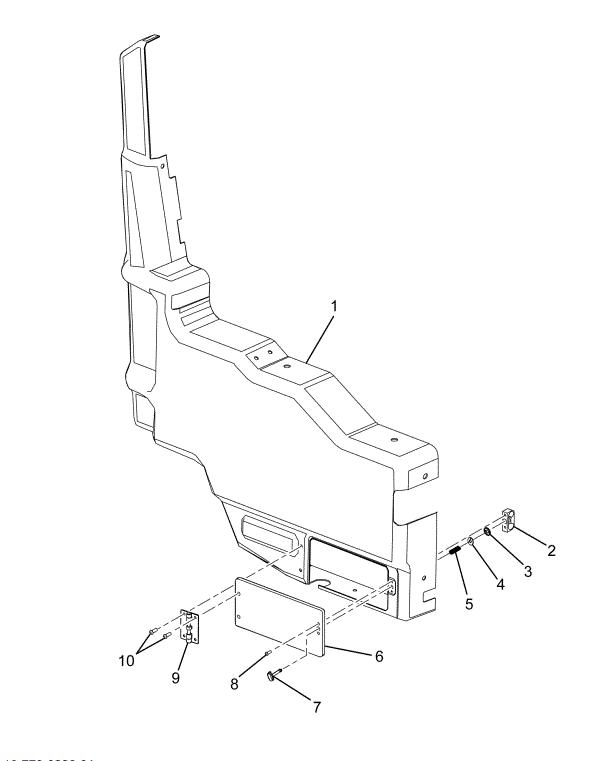

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL COVER LEFT HAND FRONT DOOR INSIDE | 1 | 3882956C2 |
| RIVET, BLIND | 4 | 403061C1 |
| RECEPTACLE FASTENER RIVET PLAT | 1 | 3882979C1 |
| RETAINER SPRING CUP | 1 | 3884343C1 |
| RETAINER DART LATCH | 1 | 3882960C1 |
| SPRING DART SELF EJECTING | 1 | 3884342C1 |
| PANEL EMERGENCY ACCESS DOOR LH | 1 | 3882958C1 |
| STUD 1/4 TURN LATCH 20MM LONG | 1 | 3882961C1 |
| RIVET, BLIND DOME HEAD | 2 | 778027C1 |
| HINGE RETRACTING PIN | 1 | 3882978C1 |
CROSS REFERENCES
- NSN 2510-01-593-4644
- NSN 2510-01-593-4644
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
