3623507C92
PANEL, SIDE DUAL CAB RIGHT 12 VOLT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$139.95
$167.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL, SIDE DUAL CAB RIGHT 12 VOLT
Weight
8.02 lbs

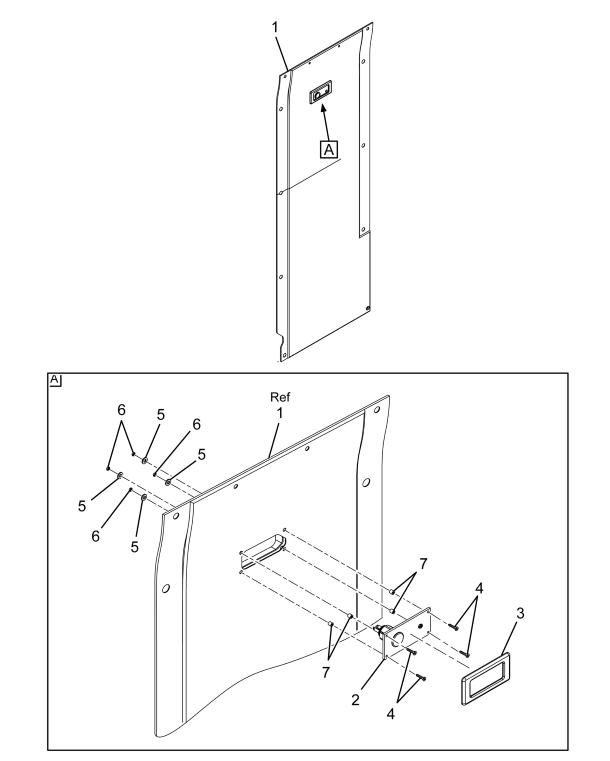

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL SIDE WITH CABINET RIGHT HAND-* | 1 | 3623504C1 |
| PANEL CONNECTOR 12VDC DUAL CABLE | 1 | 3598901C1 |
| BEZEL, TRIM TV ADAPTER AND ANTENNA | 1 | 3601138C1 |
| FLAT HD MACH #6-32 UNC X 1/4 LG | 4 | 28204R1 |
| WASHER .06" THICK .194" I.D. X 1 1/16" O.D. | 4 | 250097R1 |
| NUT, TERMINAL | 4 | 107361H |
| SPACER, FILLER TRIM | 4 | 3623721C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
